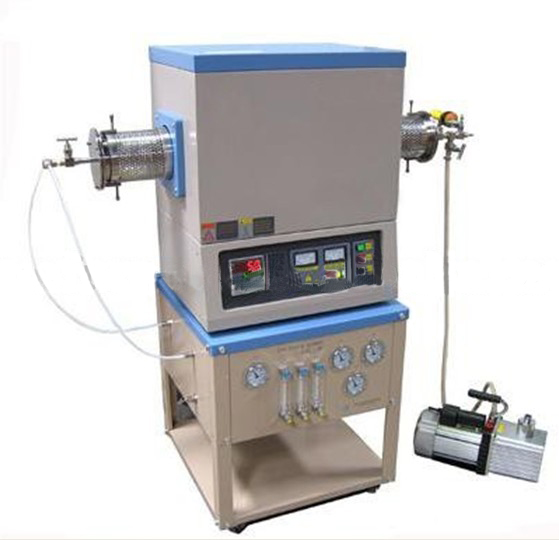

ST-1600MT Vacuum Tube Furnace,Laboratory Vacuum Muffle Furnaces,Vacuum Atmosphere Tube Furnaces

model: ST-1600MT Tube Furnaces (Heated by MoSi2 elements)

Product Specifications/Features :
Inside Chamber Size: dia60x300mm(diameter2.5"x 12")
Standard Working Temperature: 1600.C ( continuous )
Maximum Working Temperature: 1650.C ( < 3 hrs)
Temperature Control: 30 steps programmable and PID automatic control
Heating Rate: 0~10.C / min (suggestion:=< 10.C)
Temperature Accuracy: +/-1.C
Heating Element: MoSi2 heating elements
Working Voltage: AC 220V Single Phase 60/50 Hz (or according to your requirement)
Max. Power: 5 KW
Net Weight: 150 Kg

Note: The furnace tube is High purity Al2O3 ceramic
Dia60mm means outer diameter, inner diameter is about 52mm
300mm means the length of hot zone
Total length is 1000mm


ST-1600MT tube furnace is a precision bench-top furnace using quality ceramic MoSi2 rods as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition. It is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1.C and 30 segments programmable up to 1600.C.


Standard Sizes:
Model Chamber size Max. Temperature
ST-1600MT Dia40x300mm (1.5"x12") 1600.C
ST-1600MT Dia40x450mm (1.5"x18") 1600.C
ST-1600MT Dia60x300mm (2.5"x12") 1600.C
ST-1600MT Dia60x450mm (2.5"x18") 1600.C
ST-1600MT Dia80x300mm (3.0"x12") 1600.C
ST-1600MT Dia80x450mm (3.0"x18") 1600.C
ST-1600MT Dia100x450mm (4.0"x18") 1600.C
