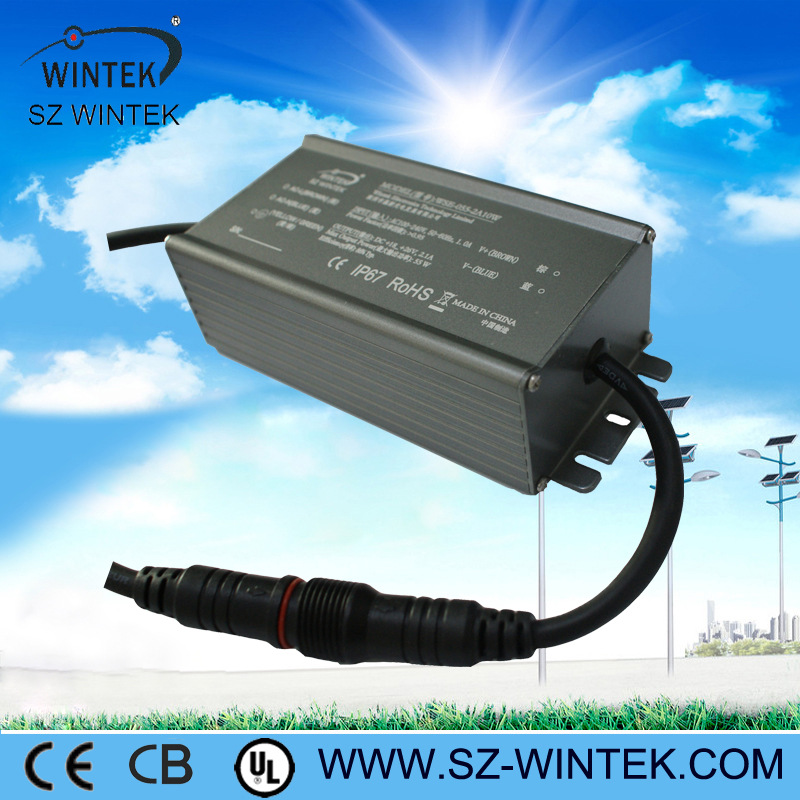

60w High Quality Waterproof Regulated Led Power Supply
60w High Quality Waterproof Regulated Led Power Supply, WSE-060-1A05WItem Code / Model Number:
WSE-060-1A05W
60w High Quality Waterproof Regulated Led Power Supply
Model: WSE-060-1A05W
Name: 60W high quality waterproof regulated led power supply
This driver also suitable for:
40-80w,12-200v,0.3-5A
Advantage and Features:
1,90Vac-264VacUniversal input voltage
2,Single Constant current output
3,Built-in active PFC function ,PF>0.95
4,Automatic Protected functions:short circuit/over voltage/Over temperature
5,Cooling by free air convection
6,Waterproof level IP67
7,Warrenty:3 years
8,Application:LED street light/LED garden light /LED buried light/ LED wall washer light
9,Aluminum mental housing ,easy for heat dissipation and ensure stability
10,Low cost, high reliability
Regulated power supply's specifications:
Model WSE-060-1A05W
Output DC current 1.05A
Voltage range 56Vdc
Rated power 60W
Ripple & Noise 250mV
Current Regulation ±3%
Starting time 1000mS/230Vac, 3000mS/115Vac
Input Voltage range 90Vac-264Vac
Frequency range 47Hz-63Hz
Power factor PF>0.95/230Vac,PF>0.98/115Vac
Efficiency 85%/230Vac
AC 115Vac 1A
Current 230Vac 1A
Inrush Current 20A/115Vac,40A/230Vac
Leakage Current <1mA/240Vac
Protection short circuit Output Short Circuit Protection.
Protection mode:Hiccup ,recovery after the fault removed.
Over voltage
Protection mode:Limit highest voltage, recovery after the fault removed.
Over temperature 105oC±5 oC ( Internal radiator's temperature)
Protection mode:Closed Output voltage,recovery after temperature automatic recovery.
Environment Working temperature&humidity -20 oC-50 oC;20%-90%RH,Without condensation .
Storage temperature&humidity -40 oC-85 oC;10%-95%RH
Vibration Resist 10-500Hz,2G ,X,Y,Z axis 60 mintues.
Safety&EMC Safety UL8750,GB4943
HI-POT I/P-O/P: 3KVac
Insulation resistance I/P-O/P: 100M Ohms/500Vdc
EMI EN55015, GB9254 CLASSB
HarmonicCurrent IEC1000-3-2,ClassC
Others Dimension 141*68*42mm(L*W*H)
Net weight 0.95KG
Name: 60W high quality waterproof regulated led power supply
This driver also suitable for:
40-80w,12-200v,0.3-5A
Advantage and Features:
1,90Vac-264VacUniversal input voltage
2,Single Constant current output
3,Built-in active PFC function ,PF>0.95
4,Automatic Protected functions:short circuit/over voltage/Over temperature
5,Cooling by free air convection
6,Waterproof level IP67
7,Warrenty:3 years
8,Application:LED street light/LED garden light /LED buried light/ LED wall washer light
9,Aluminum mental housing ,easy for heat dissipation and ensure stability
10,Low cost, high reliability
Regulated power supply's specifications:
Model WSE-060-1A05W
Output DC current 1.05A
Voltage range 56Vdc
Rated power 60W
Ripple & Noise 250mV
Current Regulation ±3%
Starting time 1000mS/230Vac, 3000mS/115Vac
Input Voltage range 90Vac-264Vac
Frequency range 47Hz-63Hz
Power factor PF>0.95/230Vac,PF>0.98/115Vac
Efficiency 85%/230Vac
AC 115Vac 1A
Current 230Vac 1A
Inrush Current 20A/115Vac,40A/230Vac
Leakage Current <1mA/240Vac
Protection short circuit Output Short Circuit Protection.
Protection mode:Hiccup ,recovery after the fault removed.
Over voltage
Protection mode:Limit highest voltage, recovery after the fault removed.
Over temperature 105oC±5 oC ( Internal radiator's temperature)
Protection mode:Closed Output voltage,recovery after temperature automatic recovery.
Environment Working temperature&humidity -20 oC-50 oC;20%-90%RH,Without condensation .
Storage temperature&humidity -40 oC-85 oC;10%-95%RH
Vibration Resist 10-500Hz,2G ,X,Y,Z axis 60 mintues.
Safety&EMC Safety UL8750,GB4943
HI-POT I/P-O/P: 3KVac
Insulation resistance I/P-O/P: 100M Ohms/500Vdc
EMI EN55015, GB9254 CLASSB
HarmonicCurrent IEC1000-3-2,ClassC
Others Dimension 141*68*42mm(L*W*H)
Net weight 0.95KG
- Place of Origin:
- China
- Brand:
- Sz Wintek
- Price Terms:
- FOB Shenzhen
- Packing:
- carton,10pcs/cnt,carton dimension:390*280*220
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 15-20 days
- Min Order Quantity:
- 3pcs
- Standard / Certificates:
- CE,RoHS,IP67,UL
- Keywords:
- led power supply, waterproof led power supply, ip67
