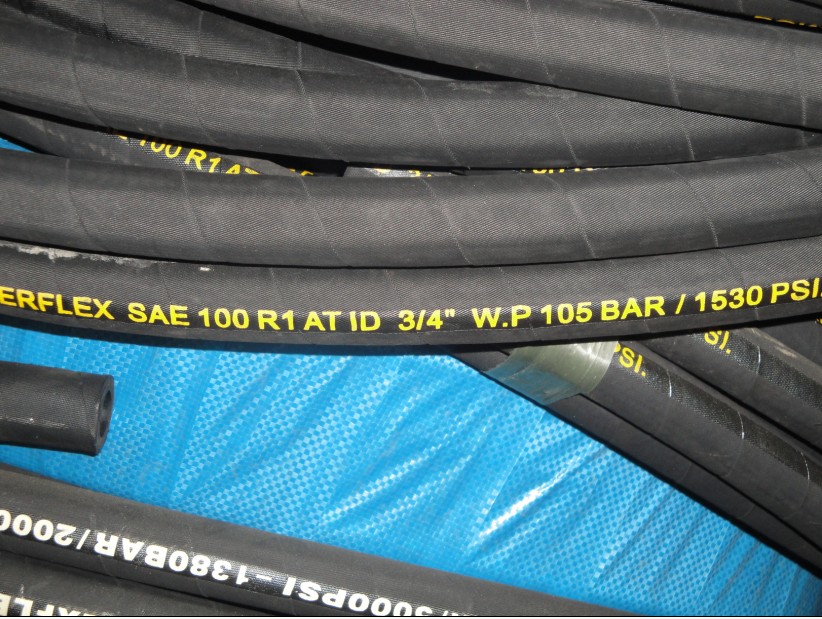

Sae100r1 At/din En 853 1sn
Sae100r1 At/din En 853 1sn, SAE100R1 AT/DIN EN 853 1SNItem Code / Model Number:
SAE100R1 AT/DIN EN 853 1SN
Sae100r1 At/din En 853 1sn
Tube: oil resistant synthetic rubber
Reinforcement: one or two high tensile steel wire braid
Cover: abrasion and weather resistant synthetic rubber
Temperature range : -40 to +100 (Centigrade)
Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight
inch mm mm mm MPa psi MPa psi mm kg/m
3/16 4.8 9.5 11.8 25.0 3630 100.0 14280 90 0.19
1/4 6.4 11.1 13.4 22.5 3270 90.0 12840 100 0.21
5/16 7.9 12.7 15.0 21.5 3120 85.0 12280 115 0.24
3/8 9.5 15.1 17.4 18.0 2610 72.0 10280 130 0.33
1/2 12.7 18.3 20.6 16.0 2320 64.0 9180 180 0.41
5/8 15.9 21.4 23.7 13.0 1890 52.0 7420 200 0.45
3/4 19.0 25.4 27.7 10.5 1530 42.0 6000 240 0.58
1 25.4 33.3 35.6 8.8 1280 35.0 5020 300 0.88
1-1/4 31.8 40.5 43.5 6.3 920 25.0 3600 420 1.23
1-1/2 38.1 46.8 50.6 5.0 730 20.0 2860 500 1.51
2 50.8 60.2 64.0 4.0 580 16.0 2280 630 1.97
Reinforcement: one or two high tensile steel wire braid
Cover: abrasion and weather resistant synthetic rubber
Temperature range : -40 to +100 (Centigrade)
Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight
inch mm mm mm MPa psi MPa psi mm kg/m
3/16 4.8 9.5 11.8 25.0 3630 100.0 14280 90 0.19
1/4 6.4 11.1 13.4 22.5 3270 90.0 12840 100 0.21
5/16 7.9 12.7 15.0 21.5 3120 85.0 12280 115 0.24
3/8 9.5 15.1 17.4 18.0 2610 72.0 10280 130 0.33
1/2 12.7 18.3 20.6 16.0 2320 64.0 9180 180 0.41
5/8 15.9 21.4 23.7 13.0 1890 52.0 7420 200 0.45
3/4 19.0 25.4 27.7 10.5 1530 42.0 6000 240 0.58
1 25.4 33.3 35.6 8.8 1280 35.0 5020 300 0.88
1-1/4 31.8 40.5 43.5 6.3 920 25.0 3600 420 1.23
1-1/2 38.1 46.8 50.6 5.0 730 20.0 2860 500 1.51
2 50.8 60.2 64.0 4.0 580 16.0 2280 630 1.97
- Place of Origin:
- China
- Brand:
- Yatai
- Unit Price:
- USD 3
- Price Terms:
- FOB Tianjin
- Packing:
- plastic woven belt
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 30 days
- Keywords:
- sae100r1 atdin en 853 1sn, hydraulic rubber hose, high pressure hose
