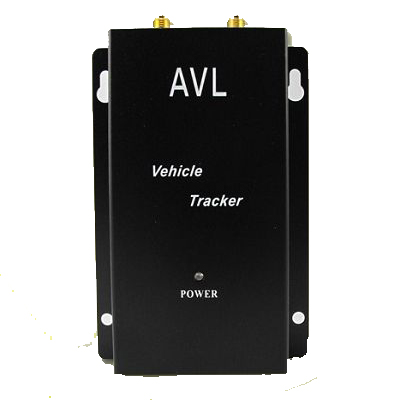

Super Gps Tracking Vehicle Tracker Device

Name: Super GPS Tracking Vehicle Tracker Device
Model: PST-AVL01
PST-AVL01 has the following main functions and features:

1. SMS and GPRS TCP/UDP Communication (PST Protocol);

2. Track on Demand;

3. Show Location Directly on Mobile Phone;

4. Track by Time Interval;

5. SOS Panic Button;

6. Movement Alarm;

7. Geo-fencing Control;

8. Low Battery Alarm;

9. Speeding Alarm;

10. GPS Blind Area Alarm (in/out);

11. Power-cut Alarm;

12. Engine Cut (Stop Engine);

13. GSM base station location when no GPRS;

Description:

1. PST-AVL01 is a GPS/GSM/GPRS tracking device specially developed and designed for Vehicle real-time tracking and fleet management;
2. With superior GPS and GPRS modules, PST-AVL01 has good sensitivity and stable Performance. It can get accurate GPS fix even in remote places.
3. With password protection;
5. You can track your vehicles by sending SMS, by making a missed call, by preset interval or by GPS tracking software for real time online tracking ;
6. Geo-fence alarm;



PST-AVL01 Characteristics:

Power Supply
+9V - +36V / 1.5A

Backup Battery
850mAh

Dimension
115mm x 60mm x 21mm

Weight
140g

Operating temperature
-20°C to 55°C

Humidity
5% to 95% Non-condensing

Frequency
GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz (optional)

GPS Chipset
latest GPS SIRF-Star III chipset

GPS Sensitivity
-158Db

GPS Frequency
L1, 1575.42 MHz

C/A Code
1.023 MHz chip rate

Channels
20 channel all-in-view tracking

Position Accuracy
10 meters, 2D RMS

Velocity Accuracy
0.1 m/s

Time Accuracy
1 us synchronized to GPS time

Default datum
WGS-84

Reacquisition
0.1 sec., average

Hot start
1 sec., average

Warm start
38 sec., average

Cold start
42 sec., average

Altitude Limit
18,000 meters (60,000 feet) max.

Velocity Limit
515 meters/second (1000 knots) max.

LED
1 LED light to show working status.

Button
One SOS button

Interface
One input and one output
