Eker International Trade Holdings Co., Limited

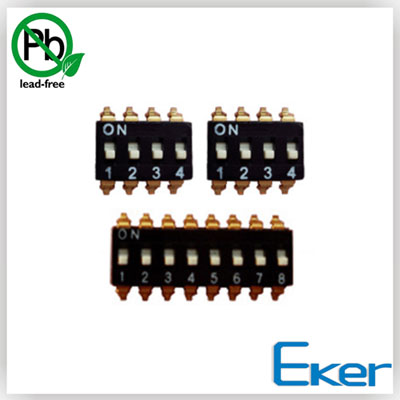

Dm Series Smt Dip Switches

Dm Series Smt Dip Switches
Item Code / Model Number:

Dm Series Smt Dip Switches Dm Series Smt Dip Switches
DM Series smt dip switch:

DIP SWITCH SOLDERING
Hand soldering:soldering iron 30W at under 350°C/3sec.Max.or at 270°C/5sec.Max.
Wave soldering:at 260°C/10sec.Max.

Reflow soldering:260°C±5°Cwithin 30 sec.in-line or Batch system.
L&G Type:un-washable & un-accept reflow process.

DIP SWITCH MECHANICAL
Operation Force: 500g max.
Operation Temp: -20°C to +70°C

Storage Temp: -40 °C to +85°C

Mechanical Life: 3,000 cycles

DIP SWITCH ELECTRICAL
Electrical Life: 2,000 cycles per switch 24VDC, 25mA
Non-Switching Rating: 100mA, 5000VDC.
Switching rating: 25mA, 24VDC.
Contact Resistance: 50mΩ max. at initial.
Insulation Resistance: (at 500VDC)1000mΩ min after life test
Dielectric Strength: 500VAC/1minute

dip switch
Many different kinds of dip switches, pls contact us for more detail information.
  • Place of Origin:
  • China
  • Brand:
  • Eker
  • Packing:
  • tube or reel
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 5-10 days
  • Min Order Quantity:
  • 1000 pcs
  • Standard / Certificates:
  • ROHS
  • Keywords:
  • dip switch, smt dip switch, switch
