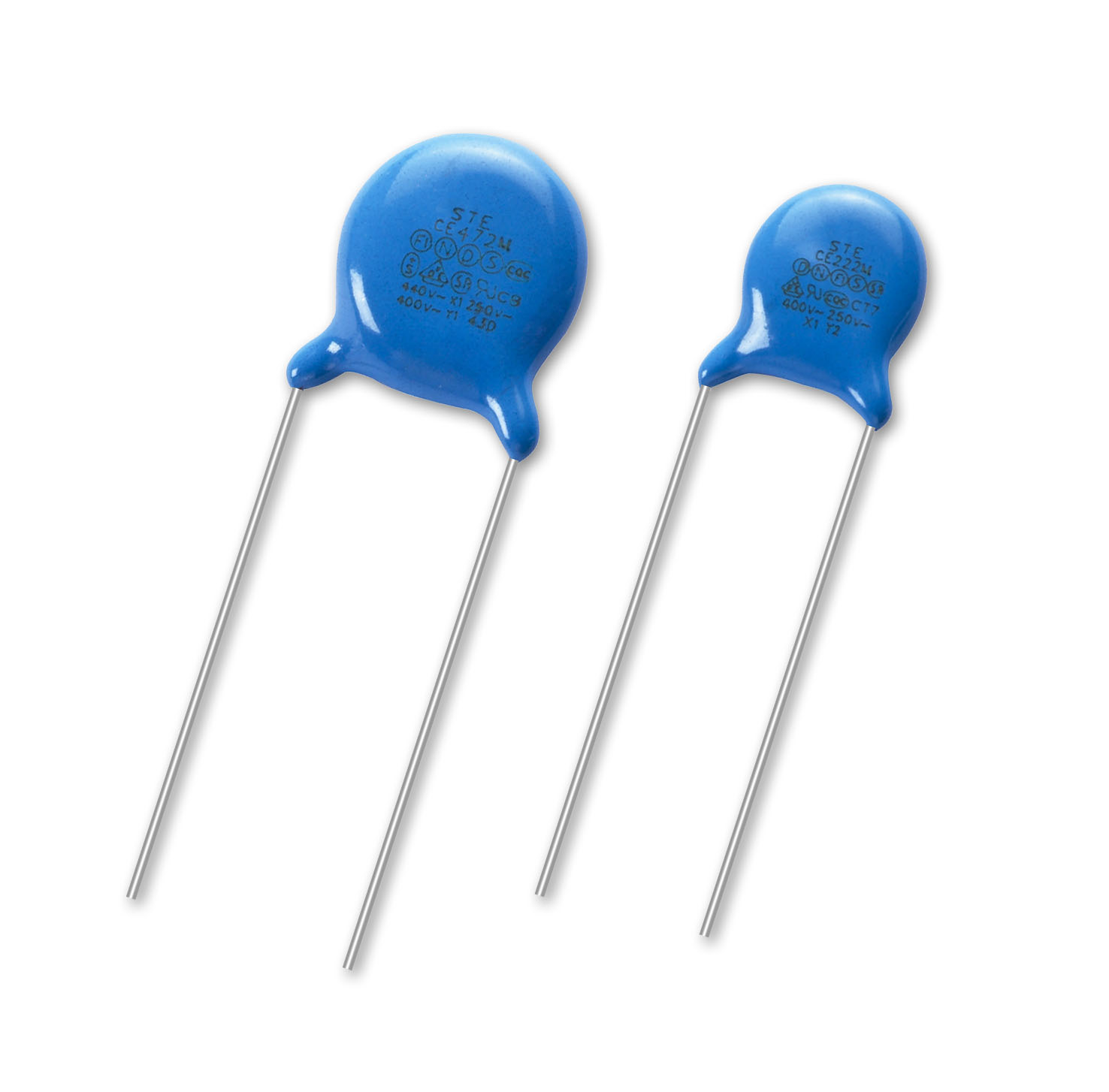

Ceramic Safety Capacitor Y1 Y2
Ceramic Safety Capacitor Y1 Y2 , Y1 Y2Item Code / Model Number:
Y1 Y2
Ceramic Safety Capacitor Y1 Y2
Ceramic safety capacitor Y1 Y2
Features:
Safety standard recognized
Compact size & cost effective
Widely used in cross the line applications
Specification:
1) Characteristics: Y1, Y2
2) Capacitance Range: 100pF to 10000Pf
3) Operating Temperature Range:
-25C to 125C, Y5P,Y5V,-25C to 85C Y5U:-25C to 125C
4) Rated Voltage: X1:440VAC Y1:250VAC, X1:400VAC Y2:250VAC
5) Dielectric With Standing Volt: 4000VAC for 1 minute, 2600VAC for 1 minute
6) Capacitance:
Within the specined tolerance when measured at
1KHz±20%(Y5P,Y5U,Y5V,X7R),1MHz20%(COG),1Vrms and 25C
7) Dissipation Factor(tan):
tan≤2.5%for char. Y5P,Y5U,Y5V,X7Rwhen measuredat 1KHz±20%1Vrms and 25C
Qual ity Factor ≥600 for char.COG when measuredat 1MHz±20%1Vrms and 25C
8)Insulation Resistance: 10,000Mωmin. at 500VDC
Features:
Safety standard recognized
Compact size & cost effective
Widely used in cross the line applications
Specification:
1) Characteristics: Y1, Y2
2) Capacitance Range: 100pF to 10000Pf
3) Operating Temperature Range:
-25C to 125C, Y5P,Y5V,-25C to 85C Y5U:-25C to 125C
4) Rated Voltage: X1:440VAC Y1:250VAC, X1:400VAC Y2:250VAC
5) Dielectric With Standing Volt: 4000VAC for 1 minute, 2600VAC for 1 minute
6) Capacitance:
Within the specined tolerance when measured at
1KHz±20%(Y5P,Y5U,Y5V,X7R),1MHz20%(COG),1Vrms and 25C
7) Dissipation Factor(tan):
tan≤2.5%for char. Y5P,Y5U,Y5V,X7Rwhen measuredat 1KHz±20%1Vrms and 25C
Qual ity Factor ≥600 for char.COG when measuredat 1MHz±20%1Vrms and 25C
8)Insulation Resistance: 10,000Mωmin. at 500VDC
- Place of Origin:
- China
- Brand:
- Huajia
- Unit Price:
- USD 0.025
- Price Terms:
- FOB Shenzhen
- Other Price Terms:
- order amount over USD8000
- Packing:
- poly bag
- Payment Terms:
- T/T;Cash
- Delivery Time:
- 15 days
- Min Order Quantity:
- 20000pcs
- Standard / Certificates:
- UL VDE
- Keywords:
- ceramic safety capacitor, y1 y2, ceramic capacitor
