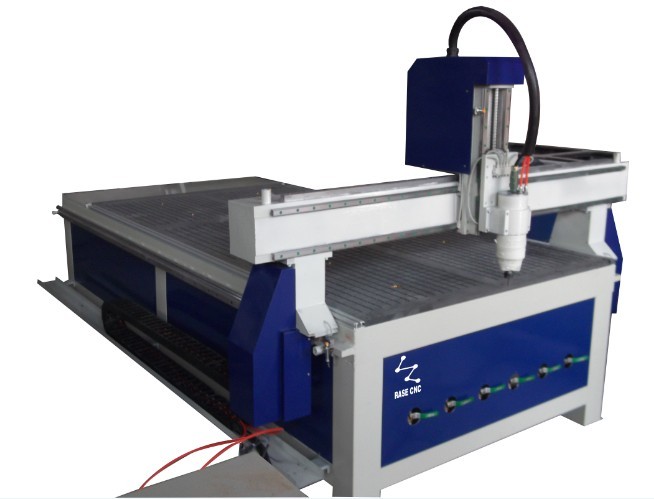

Woodworking Machine

Model
RW1325
RW1530
Option


Working Area (XxYxZmm)
1300x2500x200mm
1500X3000X200mm
According to demands


X, Y Structure
Rack gear

Z Structure
Ball Screw

Max Moving Speed
32000mm/min

Max Engraving Speed
20000mm/min

XYZ traveling positioning accuracy
±0.04/300mm

XYZ repositioning accuracy
±0.04mm

Spindle power
3kw/4.5kw/6kw/8kw

Spindle Speed
6000-24000rpm

Diameter of cutter
ф3.175,ф6,ф12.7

Voltage
AC220V,50Hz(option:AC380V,50Hz)

Drive type
Stepper(Option: servo)

Working Dictate
G Code

Operating system
Dsp System, Option: match 3 PC software)

Interface
USB

Flash memory
128M(U Disk)

Software Compatibility
Type3,Ucancam (option, Art cam Software)

Running Environment
Temperature: 0℃～45℃

Relative humidity: 30%～75%
