New Torque testing

New Torque testing , HP-10
Item Code / Model Number:
HP-10

New Torque testing New Torque testing

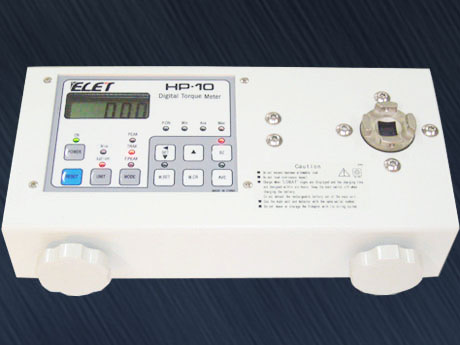

Name: Digital Torque Meter (Intelligent Type)
Brand: ELET
Model: HP-2/HP-10/HP-20/HP-50/HP-100/HP-300
product features:
1, Automatic shutdown (Would be closed automatically if placed over 10 minutes.
2, It can calculate the maximum, minimum and average torque.
3. Automaticly return to zero)
4. Automatic deletion of torque data (automatic reset time can be adjusted by switch )
5, With LCD display,The testing value can be reading easily and won't miss.
6, Torque value can be settable, And buzzer can remind operator .
7, The peak shows will held until reset, in order to protect accurate.
8, Both clockwise and anticlockwise torque can be tested.
9, Test data will be showed as a negative value when testing in anticlockwise.
10, Strain gauge attach to torque sensor directly,it is with shockproof device self-own.
11, It can connect to external data processing control system.
12, This meter is with rechargeable batteries, small volume and light weight.Tt is convenient to use.
13, The measured data can be transferred to computer by output port to undertake handling.

Model HP-2 HP-10 HP-20 HP-50 HP-100 HP-300
Measurement Range N.m 0.003-0.200 0.015-1.000 0.02-2.000 0.075-5.00 0.15-10.00 0.45-30.00
Lbf.in 0.03-1.80 0.15-9.00 0.20-18.00 0.75-45.00 1.5-90.00 4.5-270.00
Kgf.cm 0.03-2.00 0.15-10.00 0.20-20.00 0.75-50.0 1.5-100.0 4.5-300.0
Accuracy Within ±0.5%
Responsive Frequency 600 Hz
Power Source 1.2V Nicd cell x 5
Recharging Time 6 hours with exclusive charger
Continuous use 8 hours
at full charge
Dimensions (mm) 123 x 230 x 65
Weight 1.8 kg
Exclusive Charger Input: AC220-240V Output: DC7.2V,120mA

1, This type contains an on-line software:
2, It can collect real-time torsion data.
3, The torque curve plotted on the software.
4, Test data can be exported in Exce spread sheets for analysis.
5, Test reports can be generated.
  • Place of Origin:
  • dongguan
  • Brand:
  • ELET
  • Unit Price:
  • USD 620
  • Price Terms:
  • FOB dongguan
  • Other Price Terms:
  • T/T
  • Packing:
  • Aluminum alloy case
  • Payment Terms:
  • T/T
  • Delivery Time:
  • 7 days
  • Min Order Quantity:
  • 1
  • Keywords:
  • torque testing, torque meter, torque tester
