8in1 Mpeg2/mpeg4 Sd Encoder

Outline

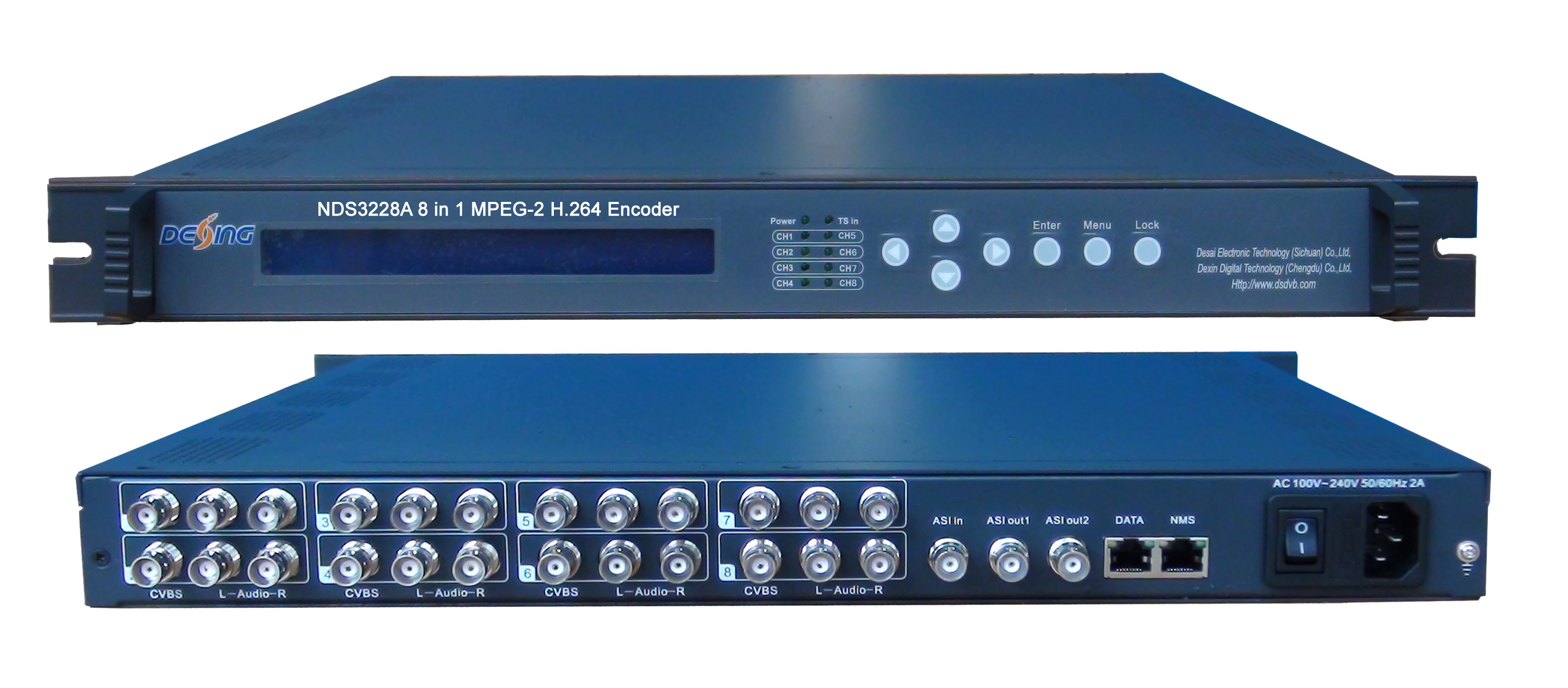

The DEXIN NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It has 8 independent channels of unbalanced audio &video input interfaces, supporting MPEG-2 and H.264 encoder type. Furthermore, it can support the MPEG-1 Audio layer 2, LC-ACC, HE-AAC, and each channel can support ultra low bit-rate (0.25~15Mbps for H.264 encoding, and 0.5~15Mbps for MPEG-2 encoding). Moreover, it has an ASI input and can multiplex the input TS with the 8 encoded SPTS to generate a MPTS output,and users can select the MPTS and 8SPTS through the front panel operation.

Features

Support H.264,Mpeg2 Encoding
MPEG1 Audio Layer 2，LC-AAC,HE-AAC
Support PSI/SI editing and inserting
Supports VBR/CBR video encoding
Supports ultra low bit rate encoding
Supports MPTS or 8 SPTS UDP IP Output
Real-time output bit-rate monitoring
LCD / keyboard and NMS operation
Inner Principle
