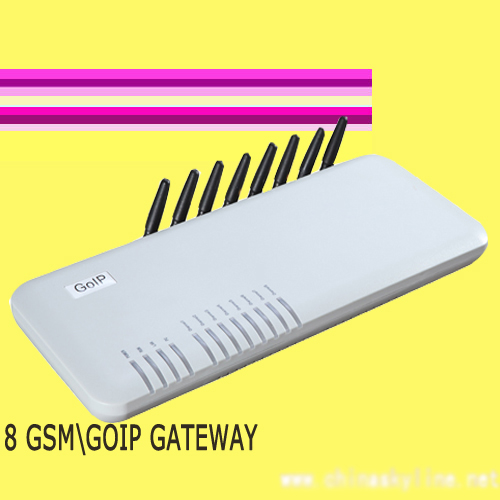

Goip 8 Voip Gsm Gateway With 8 Ports

GOIP8

GOIP8 is a 8 SIM Card boardband gateways newly develop by SKYLINE. It is a new product for seamless connection between the GSM network and VoIP network. When the mobile phone SIM card is installed in the GoIP, users can register the GSM phone to the VoIP softswitch system. Through the GoIP, users can realize the uplink and downlink calls between the GSM network and the VoIP network. the flexible routing function can meet special requirements of various call forwarding. In particular, the GoIP gateway supports multi device groups, with flexible setting of large GSM gateway groups with different channel numbers.

Key Features:

Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
Single or Multiple Server Registrations
Two 10/100 Ethernet circuits connect to the LAN and an additional device
GSM module for making GSM calls
Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
VLAN and QoS support
NAT Transversal and Router functions
Voice prompts, HTTP Web, Auto Provision support for configuration and updates
Highly stable embedded Linux operating system in high performance ARM 9 Processor

Basic Features:

LEDs for Power, Ready, Status, WAN, PC, GSM
Call forward from GSM to VoIP and VoIP to GSM
Dial in mode or dial out mode only
Dial Plan
Password protection for both GSM dial in or dial out
Retransmit GSM Caller ID to VoIP terminal

Enhanced Features:

Dynamic selection of codec
Advanced jitter buffer
Automatic traversal of NAT and firewall
VLAN / Qos
Router
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support: English and Chinese

Supported Standards:

ITU: H.323 V4, H.225, H.235, H.245, H.450
RFC 1889 - RTP/RTCP
RFC 2327 SDP
RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
RFC 2976 SIP INFO Method
RFC 3261 SIP
RFC 3264 Offer/Answer model with SDP
RFC 3515 SIP REFER Method
RFC 3842 A Message Summary and Message Waiting Indicator
RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
RFC 3891 SIP Replaces Header
RFC 3892 SIP Referred-By Mechanism
draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control - Transfer
Codec: G.711 (A/µ law), G.729A/B, G.723.1
DTMF: RFC 2833, In-band DTMF, SIP INFO

Physical and Environmental:

Operating temperature: 10°C to 40°C (50°F to 104°F)

Storage temperature: 0°C to 50°C (32°F to 122°F)

Weight:1300 g (1 lb) (Including AC/DC Adapter)

Size:220 mm (W) x 380 mm (L) x 85 mm (H) (Width x Length x Heigth

Power: 12 Vdc 3A (AC/DC adapter included)

Safety:

Emissions:

Immunity:

Other Approval:

Warranty: one year
