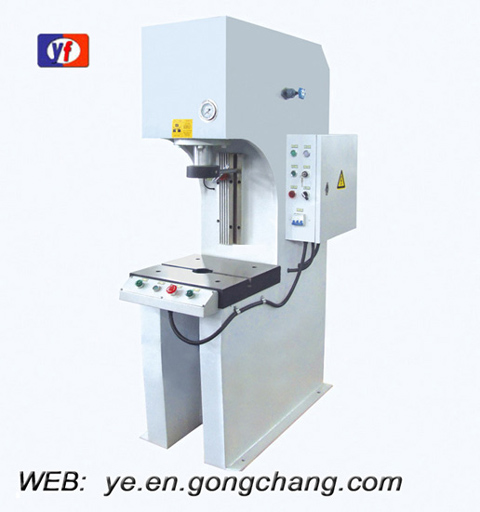

Yj 41 Series Single-column Hydraulic Press

Type YJ41 Series Single Column Arber Hydraulic Press is a kind if mediumsmall hydraulic press with multi-functions suitable for the calibration of the parts like bearings and moulding materials and for the arber of parts like bearings and sleeves, at the same time, the machine tool can also complete the technology function of bending, marking and shelling of plate material parts, and the tunction of stretching of simple parts,it can also be used to press powder and plastic products which the requirements are not strict.
Type YJ41 Series products are suitable for the flow assembly of machine tool, internal combustion textile machinery,axle,bearing,washing machine,automobile motor,air conditioner motor,electric appliance in military enterprise and jojnt venture enterprise.
Our factory has a strong technical forcal and can meetany requirement from customer,such like technical paramet,specification and tonnage.
Main Technical Parameters
Type Unit 1T 1.6T 2.5T 4T 6.3T 10T
Nominal force KN 10 16 25 40 63 100
The maximum working pressure of the fluid Mpa 4.2 5.1 4.4 5.6 5.2 8.1
The maximum distanc between the under surface of the slipper and the surface of the working platform mm 300 300 300 390 450 500
The maximum stroke of the slipper mm 120 160 160 200 250 300
Down velocity of the slipper mm 60 44 42 35 48 45
Retrn velo city of the slipper mm 82 75 70 58 75 80
The depth mm 160 160 160 180 250 250
The size of the Workingplatform Front,Rear mm 300 300 300 350 420 420
Left,Right mm 400 400 400 450 450 450
The heigth of the working platform to the suface of the floor mm 730 730 730 730 730 730
The diameter for cuting hole mm 70 70 70 70 80 80
Description of oil pump Medium-high pressure blade pump
The power for motors Kw 1.5 1.5 2.2 2.2 3 4
The conriguration size of the machine tool Front,Rear mm 720 725 725 785 1050 1100
Letf,Right mm 610 560 560 560 600 650
The height above the floor mm 1455 1450 1450 1630 1800 1890
Total weight(approx) kg 200 300 350 500 800 1000
Continued
Type Unit 16T 25T 40T 63T 100T 160T 250T 315T 400T 500T
Nominal force KN 160 250 400 630 1000 1600 2500 3150 4000 5000
The maximum working pressure of the fluid Mpa 13 20.3 19.9 16.5 26.3 25 25 25 25 25
The maximum distanc between the under surface of the slipper and the surface of the working platform mm 550 600 700 800 800 900 900 900 900 900
The maximum stroke of the slipper mm 350 350 400 500 500 500 500 500 500 500
Down velocity of the slipper mm 48 48 33 39 36 24 23 23 23 23
Retrn velo city of the slipper mm 115 115 94 84 98 65 55 55 55 55
The depth mm 280 280 300 300 300 325 325 325 400 450
The size of the Workingplatform Front,Rear mm 500 500 550 580 580 650 650 650 700 750
Left,Right mm 550 600 600 600 650 800 900 900 900 900
The heigth of the working platform to the suface of the floor mm 730 730 730 730 730 730 800 900 900 900
The diameter for cuting hole mm 100 100 100 120 120 140 140 140 140 140
Description of oil pump Pressure equaligation variable axial plunger pump
The power for motors Kw 5.5 5.5 5.5 7.5 11 11 15 22 22 22
The conriguration size of the machine tool Front,Rear mm 1250 1280 1380 1550 1550 1650 1750 1780 1800 1800
Letf,Right mm 780 830 830 830 880 1240 1275 1320 1350 1350
The height above the floor mm 2100 2100 2400 2680 2680 3020 3100 3300 3400 3500
Total weight(approx) kg 1400 1600 2200 4000 4500 8000 120000 14000 20000 24000
