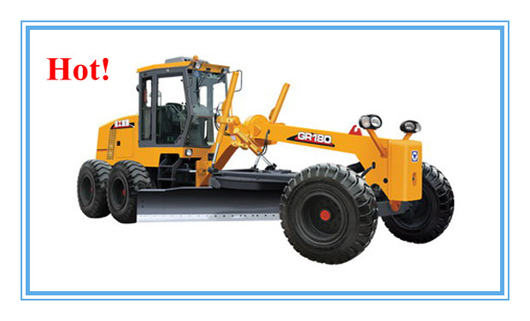

Xcmg Motor Grader Gr180 Grader Price
Xcmg Motor Grader Gr180 Grader Price, Best sales(021) CTA/SC engineItem Code / Model Number:
Best sales(021) CTA/SC engine
Xcmg Motor Grader Gr180 Grader Price
Main Technical Specification GR180
1、Engine model CTAA8 3/SC8D190G2B1
2、Rated power/speed 138/2200, 140/2300kw/rpm
3、Dimension(L*W*H) 8900×2625×3470mm
4、Operating weight(Standard) 15400 kg
5、Travelling speed,torward 5,8,11,19,23,38km/h
6、Travelling speed,reverse 5.11.23km/h
7、Tractive force(f=0.8) 84kN
8、Max.gradeability 30 %
9、Tire inflation pressure 260kpa
10、Working hydraulic pressure 18Mpa
11、Transmission pressure 1.3~1.8Mpa
12、Max.steering angle of front wheels (Left/Right) 50°
13、Max.lean angle of front wheels (Left/Right) 17°
14、Max.oscillation angle of front axle (Up/Down) 15 °
15、Max.oscillation angle of balance box (Forward/Rear) 15°
16、Frame articulation angle (Left/Right) 27°
17、Min.turning radius using articulation 7.3m
18、Maximum lift above ground 450mm
19、Maximum depth of cutting 500mm
20、Maximum blade position angle 90°
21、Blade cutting angle 28~70 °
22、Circle reversing rotation 360°
23、Moldboard width×height 3965×610mm
1、Engine model CTAA8 3/SC8D190G2B1
2、Rated power/speed 138/2200, 140/2300kw/rpm
3、Dimension(L*W*H) 8900×2625×3470mm
4、Operating weight(Standard) 15400 kg
5、Travelling speed,torward 5,8,11,19,23,38km/h
6、Travelling speed,reverse 5.11.23km/h
7、Tractive force(f=0.8) 84kN
8、Max.gradeability 30 %
9、Tire inflation pressure 260kpa
10、Working hydraulic pressure 18Mpa
11、Transmission pressure 1.3~1.8Mpa
12、Max.steering angle of front wheels (Left/Right) 50°
13、Max.lean angle of front wheels (Left/Right) 17°
14、Max.oscillation angle of front axle (Up/Down) 15 °
15、Max.oscillation angle of balance box (Forward/Rear) 15°
16、Frame articulation angle (Left/Right) 27°
17、Min.turning radius using articulation 7.3m
18、Maximum lift above ground 450mm
19、Maximum depth of cutting 500mm
20、Maximum blade position angle 90°
21、Blade cutting angle 28~70 °
22、Circle reversing rotation 360°
23、Moldboard width×height 3965×610mm
- Place of Origin:
- China
- Brand:
- Xcmg
- Unit Price:
- USD negotiable
- Price Terms:
- FOB Guangzhou/shenzhen
- Packing:
- Flat Rack
- Payment Terms:
- T/T
- Payment Remarks:
- 30% for deposit.
- Delivery Time:
- 15 -50 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- CE/ISO9001
- Keywords:
- xcmg motor grader, motor grader, grader price
