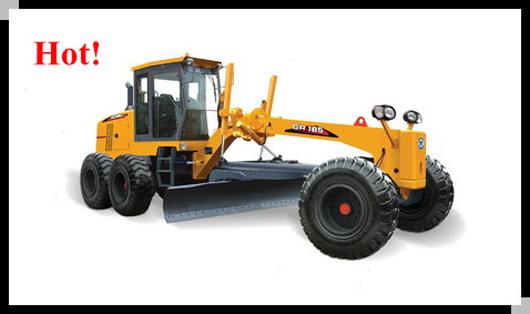

Xcmg Motor Grader/grader Gr165 Cummins Engine

Xcmg Motor Grader/grader Gr165 Cummins Engine, Best sales (020)Motor Grader
Item Code / Model Number:
Best sales (020)Motor Grader

Xcmg Motor Grader/grader Gr165 Cummins Engine Xcmg Motor Grader/grader Gr165 Cummins Engine
Main Technical Specification GR165


1、Engine model 6BTA5.9/SCBD170G2B1
2、Rated power/speed 125/2200kw/rpm
3、Dimension(L*W*H) 8900×2625×3470mm
4、Operating weight(Standard) 15000kg
5、Travelling speed,torward 5,8,11,19,23,38km/h

6、Travelling speed,reverse 5.11.23km/h
7、Tractive force(f=0.8) 82kN
8、Max.gradeability 30%
9、Tire inflation pressure 260 kpa
10、Working hydraulic pressure 18Mpa

11、Transmission pressure 1.3~1.8Mpa
12、Max.steering angle of front wheels (Left/Right) 50 °
13、Max.lean angle of front wheels (Left/Right) 17°
14、Max.oscillation angle of front axle (Up/Down) 15 °
15、Max.oscillation angle of balance box (Forward/Rear) 15°

16、Frame articulation angle (Left/Right) 27°
17、Min.turning radius using articulation 7.3 m
18、Maximum lift above ground 450mm
19、Maximum depth of cutting 500mm
20、Maximum blade position angle 90°

21、Blade cutting angle 28~70°
22、Circle reversing rotation 360°
23、Moldboard width×height 3965×610mm
  • Place of Origin:
  • China
  • Brand:
  • Xcmg
  • Unit Price:
  • USD negotiable
  • Price Terms:
  • FOB Guangzhou/shenzhen
  • Packing:
  • Flat Rack
  • Payment Terms:
  • T/T
  • Payment Remarks:
  • 30% for deposit.
  • Delivery Time:
  • 15 -50 days
  • Min Order Quantity:
  • 1set
  • Standard / Certificates:
  • CE/ISO9001
  • Keywords:
  • xcmg motor grader, grader, motor grader
