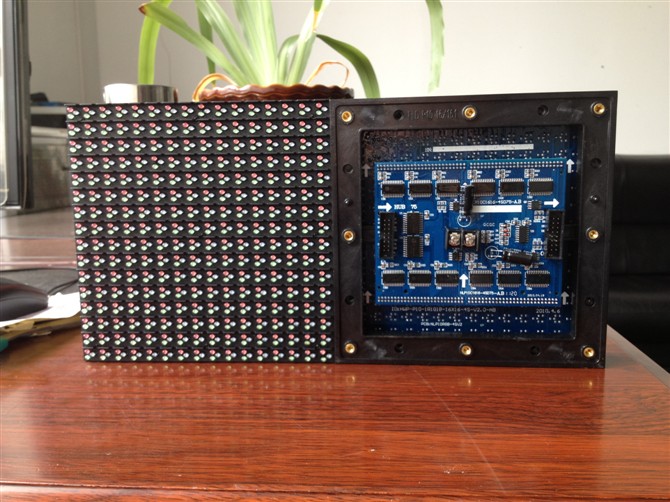

Promotion: P10 Rgb Full Color Led Display Module
Promotion: P10 Rgb Full Color Led Display ModuleContinuous Selling Item
Promotion: P10 Rgb Full Color Led Display Module
All of LED module use chip from AXT,CREE,Nichia,Taiwan Opto, SILAN, constant current driver IC use MBI 5026.
Pitch: 10mm
Pixel density: 10000 dots/m2
Max power: 1100 W/m2
Brightness: >6000 cd/m2
Scan Mode: 1/4 scan
View distance: more than 10 m
Parameter:
P10 RGB LED MODULES
1. Module size: 160mm*160mm
2. Module pixel: 16*16
3. Pixel configuration: 1R1G1B
4. LED package: DIP346
5. Cabinet size: 640mm*480mm*135mm
6. Cabinet piexl:64*48
7. viewing angle: 110° / 45°
8. Colours (internal process): 67.8 billion
9. Grey scale: 12 bits
10.Refreshing frequency: >180 frames/second
11.Scanning frequency: >480 frames/second
12.video source compatibility: RF,S-video,RGB,RGBHV,YUV,YC,Flash,Pictures,Composition,etc.
13.Control software provided: LED STUDIO
14.Operating temperature: -20 to 50 degree
15.Storage temperature: -40 to 85 degree
16.Storage humidity:10%---90%
17.Working voltage: AC110/220V±15%
18.Water protection: IP65(Front),IP45(Back)
19.Life-span( 50% of original brightness): 100,000 hours
Pitch: 10mm
Pixel density: 10000 dots/m2
Max power: 1100 W/m2
Brightness: >6000 cd/m2
Scan Mode: 1/4 scan
View distance: more than 10 m
Parameter:
P10 RGB LED MODULES
1. Module size: 160mm*160mm
2. Module pixel: 16*16
3. Pixel configuration: 1R1G1B
4. LED package: DIP346
5. Cabinet size: 640mm*480mm*135mm
6. Cabinet piexl:64*48
7. viewing angle: 110° / 45°
8. Colours (internal process): 67.8 billion
9. Grey scale: 12 bits
10.Refreshing frequency: >180 frames/second
11.Scanning frequency: >480 frames/second
12.video source compatibility: RF,S-video,RGB,RGBHV,YUV,YC,Flash,Pictures,Composition,etc.
13.Control software provided: LED STUDIO
14.Operating temperature: -20 to 50 degree
15.Storage temperature: -40 to 85 degree
16.Storage humidity:10%---90%
17.Working voltage: AC110/220V±15%
18.Water protection: IP65(Front),IP45(Back)
19.Life-span( 50% of original brightness): 100,000 hours
- Place of Origin:
- Guangzhou, China
- Brand:
- Jiakexin
- Unit Price:
- USD 18.6
- Port:
- FOB 18.6
- Packing:
- 1box 40pc led module
- Payment Terms:
- ;T/T
- Delivery Time:
- 3-10
- Min Order Quantity:
- 1piece
- Standard / Certificates:
- ISO9001
