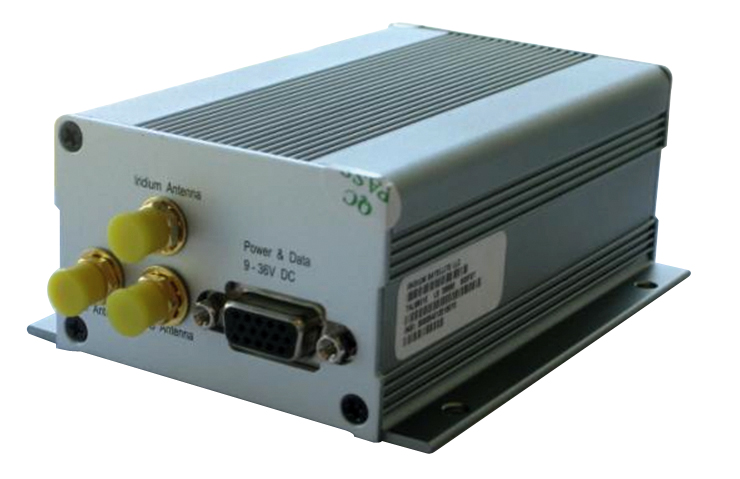

Dual Mode Iridium/gsm Tracker

Sat TRACK Iridium/GPRS Dual Mode Communication Terminal is an industrial level dual channel data radio and GPS positioning terminal, based on Iridium system SBD technology and the GPRS technology of GSM system. It embedded Iridium and GPRS communication module and GPS receivers.

Application Area

Especially suitable fore these Districts: Oceans, mountains, deserts, isolated islands, glaciers, polar and other remote area without communication network
Especially suitable fore these applications: Oil exploration, industrial control, geological surveying, engineering surveying, scientific exploration, marine / terrestrial environmental monitoring, disaster monitoring and forecasting, marine emergency rescue, marine safety alarm system/ Ship Security Alert System (SSAS), vehicles/ vessels positioning and tracking, rescue and disaster relief, emergencies handling, emergency communications, emergency rescue command and so on.

Features:

Dual Mode Communication: Iridium SBD and GPRS
Communication Channel Selection: Auto choosing communication channel, GPRS is top priority
Support Transparent two-way data transmission
Full coverage in Global, No Blind Area
Very high reliability and relatively low in communication cost
Working Power: 9-33V DC
Power Consumption: 1 W, Transmitting power is less than 1.75W
Communication Interface： RS232 9600 Baud rate 8N1 (Customizable)
Uplink data: Maximum 340 characters; Downlink data：Maximum 270 characters
Transmission Delay： 10 to 60seconds
Alarm Loop： Default is set as closed loop, open loop when warning, the maximum length of the loop can reach 500m
Size: length 109mm, height 46mm, width 68mm
