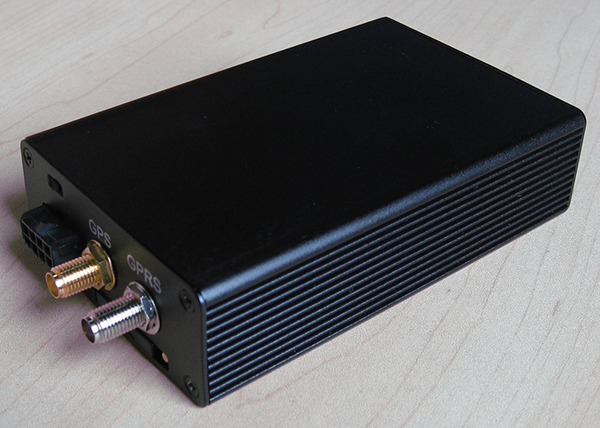

Vehicle Tracking Terminal
Vehicle Tracking Terminal, SP1000Item Code / Model Number:
SP1000
Vehicle Tracking Terminal
• Two-way GPRS connection
• Support UDP protocol
• Remote parameter setting and function testing
• GPRS reporting time interval from 5 sec to 18 hr
• GPRS blind zone 3 hours recording capacity
• Support optional LCD panel
• Panic button
• Support optional three temperature sensors
• Support optional telephone handset
• Support optional door sensor
• Support two-way voice speaking
• Support remote listening
• ComConfig program for initialization
• Support OTA upgrade
Main power input: DC12~36V
Working current: 24V DC: 60-120 mA 12VDC: 110-210 mA
Standby current: 24VDC: <55 mA 12VDC: <105mA
Backup Power: Around 3hr at reporting 30sec
Signal in/out: 10 in/3 out
Com port: RS232, +5VDC output
Communication: SMS, GPRS
Operating Temperature: -25 °C to +75 °C
Storage Temperature: -40 °C to +85 °C
Relative Humidity: 93±2%, non-condensing
Vibration: 10-55-10Hz, amplitude: 2mm Acceleration: 9.8m/s²
GSM Frequency bands 850/900/1800/1900MHz
GPS Acquisition Time
Hot Start <1 seconds
Warm Start <29 seconds
Cold Start <29 seconds
GPS General 50 channels, L1, C/A code
Temp sensor Range: -55~+125 °C
Discrepancy: ±0.5 °C
• Support UDP protocol
• Remote parameter setting and function testing
• GPRS reporting time interval from 5 sec to 18 hr
• GPRS blind zone 3 hours recording capacity
• Support optional LCD panel
• Panic button
• Support optional three temperature sensors
• Support optional telephone handset
• Support optional door sensor
• Support two-way voice speaking
• Support remote listening
• ComConfig program for initialization
• Support OTA upgrade
Main power input: DC12~36V
Working current: 24V DC: 60-120 mA 12VDC: 110-210 mA
Standby current: 24VDC: <55 mA 12VDC: <105mA
Backup Power: Around 3hr at reporting 30sec
Signal in/out: 10 in/3 out
Com port: RS232, +5VDC output
Communication: SMS, GPRS
Operating Temperature: -25 °C to +75 °C
Storage Temperature: -40 °C to +85 °C
Relative Humidity: 93±2%, non-condensing
Vibration: 10-55-10Hz, amplitude: 2mm Acceleration: 9.8m/s²
GSM Frequency bands 850/900/1800/1900MHz
GPS Acquisition Time
Hot Start <1 seconds
Warm Start <29 seconds
Cold Start <29 seconds
GPS General 50 channels, L1, C/A code
Temp sensor Range: -55~+125 °C
Discrepancy: ±0.5 °C
