Metal forming machine / Cold roll forming machine/ Cold Roll Former

Roll Forming Machine, Cold Roll Forming Machine, Cold Roll Former, Cold Forming Machine, Roll Forming Line

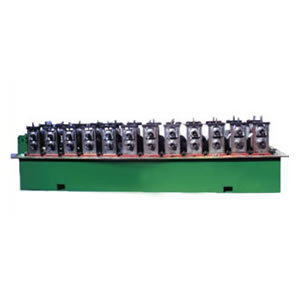

Metal forming machine / Cold roll forming machine
Type: LW-40, LW-50, LW-70
Suitable Material For Production
Cold-rolled steel strip and heat-treated galvanized steel strip
Size of material: (below 200)mm×(2.0-3.0)mm.
Product Feature And Usage
Formed by this machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
LW-40 Main Technical Specification
Roll shift diameter (mm) Dia 40 Level roller logarithm 6-20
Formed width MAX(mm) 200 Main motor power 2.2 ~ 5.5kw
Thickness(mm) 1.2 Power AC
Working speed(m/min) 18 Hydraulic motor power cut off 4.0kw
Max the center distance of axis (mm) 145 Reducer JLQ~250
Min the center distance of axis(mm) 105
