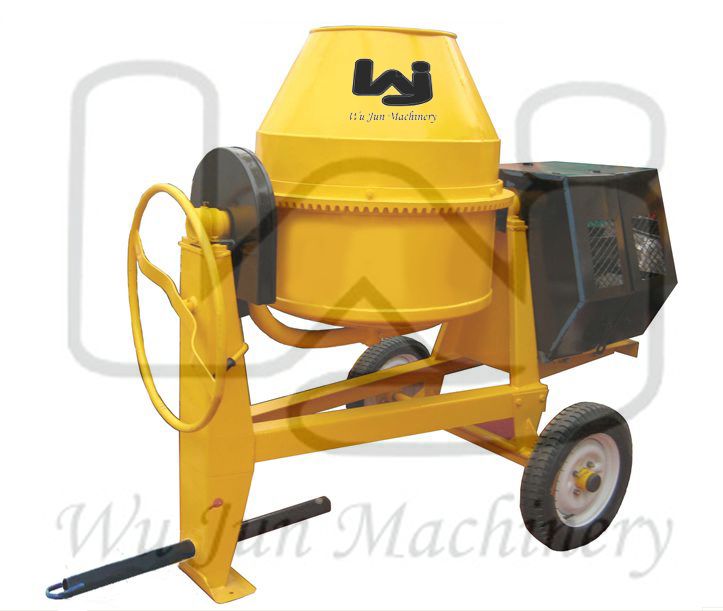

Cm-2a Diesel Concrete Mixer

CM-2A 260-400L Concrete mixer two wheels

Model CM-2A

Place of origin Zhejiang,China(Mainland)

Brand Name Wujun

Model Number
CM-2A 260
CM-2A 300
CM-2A 350
CM-2A 400

Charging Capacity
260L
300L
350L
400L

Reclaiming Capacity
230L
270L
320L
370L

Productivity
6-10m³/h
8-12 m³/h
10-14 m³/h
12-16 m³/h

Motor Power
Air-cooled diesel engine 4HP or 6HP

Mixing Power
4HP
6HP

Speed of Mixing Drum
30r/min

Thickness of Drum
2.75-3.75mm

Water Supply Mode
Hand control

Working Cycle Period
1min

Maximum aggregate sizes
60mm

Discharging Way
Hand Control

Transmission Way
Gear Wheel

Outline Dimension
2.2CBM

Overall Dimensions(l*w*h)
1900x900x1100mm
1960x940x1100mm
1960x940x1100mm
1960x1100x1200mm

Weight
333kg
353kg
379kg
389kg

Color
Yellow (or as your wish)

Packing detail
Iron frame 12 sets/20’container 26 sets/40’ container

Guarantee
Half of year

Supply ability
100 sets per month

Type of the tires
4.00-12(Pneumatic wheels diameter 550x150mm)
