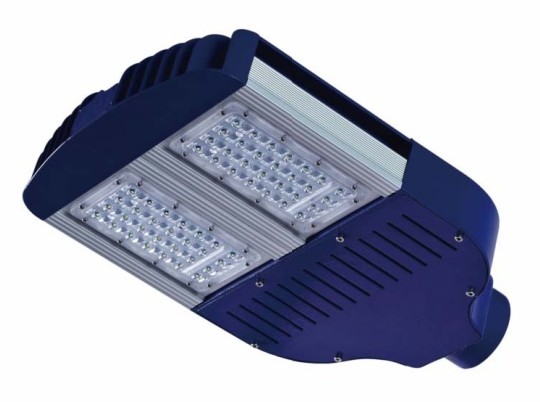

60W LED street light

Item Name LED street light
Item No. LY-S2A3-JW060
Power(W) 60W
LED Quantity(PCS) 60pcs 1W LED
Voltage(V) AC85-264V
Working frequency 50-60Hz
Power Factor 0.92~0.99
Luminous Flux(LM) 5400lm
Luminous Efficacy(LM/W) >90lm/W
CCT(K) 3000－3500K/5000－6000K
CRI(RA) Ra>75
View Angle 120°:lateral axis 120°,direct-axis 60°；
140°:lateral axis140°,direct-axis 60°
Material Quality Aluminum
IP Class IP65
Size(MM) 445(L)*316(W)*75(H)
N/W(KG) 5.6Kg
Life Span(HOURS) >50000hours
Installing Height(M) 5~8m
Working Environment ﹣40℃～60℃ RH 10%～95%
Storage Condition ﹣40℃-80℃ RH 10%～95%

LY luminous LED Street light feature:

1.Eutectic Solder ultra light rate high power LED replaces traditional source, green environmental protection, energy saving efficiency, unique eutectic solder encapsulation technology patent technology, ensuring low thermal resistance(LED thermal resistance 5°C/W),long life span and high reliability.
2.Rectangular flare patent technology ,achieve high intensity of illumination, high evennes,eliminate glare, a bat wings light distribution curve shape, rectangular flare diminishing light, that pavement evenness reach to 0.7,substantially higher than the standards prescribed by the state 0.4
3Ventilation type, uniform cooling shell design ,long life span, maintain easily, original ventilation type, uniform cooling structure, optimization cooling system design, can control LED junction temperature within 60 digress strictly, ensure lifespan over 50000hrs.
4High efficiency in light utilization, perfect performance in fixture working;
5.High efficiency in power supply;
6.Perfect performance for vision;
7.Great luminous flux maintenance factor8.The reflector's design is made by ourselves and controls the best light distribution.

LED Street light TYPICAL APPLICATIONS:

Highway | Main Street | Normal Road | Laneway | Park | Garden | Parking Area
