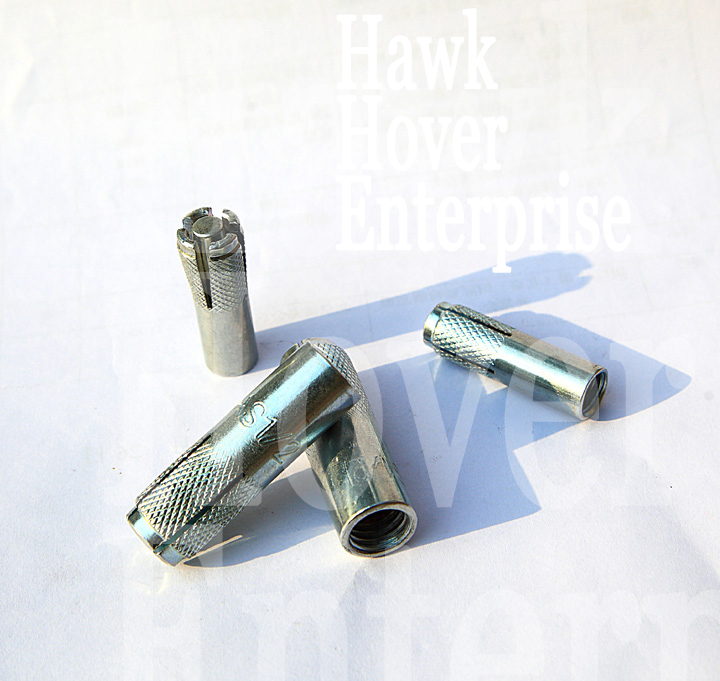

Drop In Anchor
Drop In Anchor, DIA01Item Code / Model Number:
DIA01
Drop In Anchor
Product Description
Drop In AnchorsWe supply sleeve anchors, wedge anchors, drop in anchors,Nylon anchors etc1)Standard: DIN JIS BSW ANSI GB2)Size: M6-M203)Type: Hex type and round type4)Surface: ZINC, NICKEL5)Package: Plastic bag/carton box/pallet6)The test values listed beneath were obtained using 200-250 kgs/cm2 concrete (no aggregated) A safe working load should not exceed 25% of stated values
SIZE ANCHOR/HOLE DIAMETER THREAD DEPTH ANCHOR DEPTH QTY/BOX
M6X25mm 8mm 10 25mm 100 pcs
M8X30mm 10mm 14 30mm 100 pcs
M10X40mm 12mm 19 40mm 50 pcs
M12X50mm 16mm 22 50mm 50 pcs
M16X65mm 20mm 30 65mm 25 pcs
M20X80mm 25mm 38 80mm 20 pcs
Email: HawkHover.David@gmail.com
Drop In AnchorsWe supply sleeve anchors, wedge anchors, drop in anchors,Nylon anchors etc1)Standard: DIN JIS BSW ANSI GB2)Size: M6-M203)Type: Hex type and round type4)Surface: ZINC, NICKEL5)Package: Plastic bag/carton box/pallet6)The test values listed beneath were obtained using 200-250 kgs/cm2 concrete (no aggregated) A safe working load should not exceed 25% of stated values
SIZE ANCHOR/HOLE DIAMETER THREAD DEPTH ANCHOR DEPTH QTY/BOX
M6X25mm 8mm 10 25mm 100 pcs
M8X30mm 10mm 14 30mm 100 pcs
M10X40mm 12mm 19 40mm 50 pcs
M12X50mm 16mm 22 50mm 50 pcs
M16X65mm 20mm 30 65mm 25 pcs
M20X80mm 25mm 38 80mm 20 pcs
Email: HawkHover.David@gmail.com
- Place of Origin:
- China
- Unit Price:
- USD 0.03
- Price Terms:
- FOB Tianjing
- Packing:
- Inner Box,outer carton with pallet;
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 15 days
- Min Order Quantity:
- 20000PCS
- Standard / Certificates:
- ISO9001-2008
- Keywords:
- drop in anchor, fastener, concrete anchor
