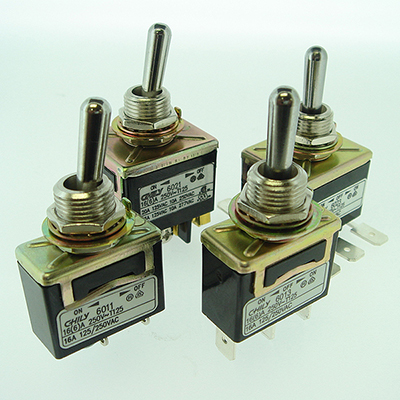

Metal Toggle Switch
Metal Toggle Switch, 60 SeriesItem Code / Model Number:
60 Series
Metal Toggle Switch
Suitable for mechanical and electrical products
Uses metal components for switch, gives good efficiency and feather touch
Circuit: On-Off, On-On, On-Off-On, (On)-Off, On-(On), (On)-Off-(On), On-Off-(On)
Operation: 2P (SPST), 3P (SPDT), 4P (DPST) or 6P (DPDT)
Terminals: soldering, quick connect, 90° quick connect, screw
Standard accessories: 2 nuts, 1 washer and 1 locking washer
Rating (UL, C-UL): 16/10A, 125/277V AC
Rating (VDE, ENEC): 16A (6) 250V AC
Withstand voltage: 1,500V AC for 1 minute
Insulation resistance: 500V DC, 100MΩ or more
Contact resistance: 2 to 4V DC, 1A 20mΩ or less
Approval: C-RU-US, VDE, ENEC
Compliant with RoHS Directive
Packaging: bulk packing, special quantity and DIY packages are available
Please contact us for more details
Uses metal components for switch, gives good efficiency and feather touch
Circuit: On-Off, On-On, On-Off-On, (On)-Off, On-(On), (On)-Off-(On), On-Off-(On)
Operation: 2P (SPST), 3P (SPDT), 4P (DPST) or 6P (DPDT)
Terminals: soldering, quick connect, 90° quick connect, screw
Standard accessories: 2 nuts, 1 washer and 1 locking washer
Rating (UL, C-UL): 16/10A, 125/277V AC
Rating (VDE, ENEC): 16A (6) 250V AC
Withstand voltage: 1,500V AC for 1 minute
Insulation resistance: 500V DC, 100MΩ or more
Contact resistance: 2 to 4V DC, 1A 20mΩ or less
Approval: C-RU-US, VDE, ENEC
Compliant with RoHS Directive
Packaging: bulk packing, special quantity and DIY packages are available
Please contact us for more details
