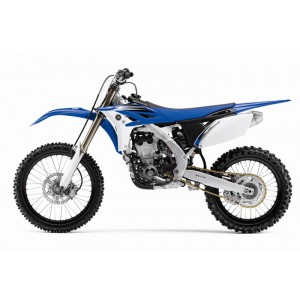

2012 Yamaha Yz250f Dirtbike

ADDITIONAL DETAILS / FEATURES

Rugged polypropylene engine and integrated water pump protector plate reduces weight.

"Shorty" adjustable front brake lever. Adjustment range is 5.5mm.

New throttle tube design provides improves throttle feeling and response

Convenient oil sight glass window

Heavy duty plastic rear caliper and lower rear disc protectors.

Lightweight, extra wide foot pegs excellent grip

Lightweight header pipe heat shield.

Serrated rear brake pedal for extra grip

Folding gear shifter tip

Stainless steel inner clutch cable provides excellent strength and durability.

Lightweight chain guide / support helps reduce chance of chain derailment and also helps protect the rear sprocket.

Heavy duty DID 520 drive chain

E10 friendly fuel system components



2012 Yamaha YZ250F - Specifications/Technical Details

ENGINE
Type 250cc liquid-cooled DOHC 4-stroke; 5 titanium valves
Bore x Stroke 77.0mm x 53.6mm
Compression Ratio 13.5:1
Fuel Delivery Keihin® FCR MX39
Ignition CDI
Transmission Constant-mesh 5-speed; multiplate wet clutch
Final Drive Chain Drive

CHASSIS
Suspension / Front KYB® Speed-Sensitive System, inverted fork: fully adjustable, 11.8-in travel
Suspension / Rear KYB® Fully adjustable single shock; 12.5-in travel
Brakes / Front Hydraulic single disc brake, 250mm
Brakes / Rear Hydraulic single disc brake, 245mm
Tires / Front 80/100-21
Tires / Rear 100/90-19

DIMENSIONS
Length 85.4 in
Width 32.5 in
Height 51.4 in
Seat Height 39.0 in
Wheelbase 58.1 in
Ground Clearance 14.9 in
Fuel Capacity 1.6 gal
Wet Weight*** 227 lb
