Hand Chain Block - Cheng Day

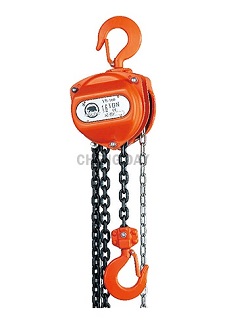

Hand Chain Block - Cheng Day, YB-050
Item Code / Model Number:
YB-050

Hand Chain Block - Cheng Day Hand Chain Block - Cheng Day
Home / Products > Manual Chain Hoist > Hand Chain Block > YB-050
http://www.chengday.com.tw/hand-chain-block/YB-050.html

1.Steel Formed Cases
Both gear and hand chain wheel are protected by Hydraulic drew cases which is ideally shaped and rugged to be able to withstand external shocks.

2.Double Housing Protection
Hand wheel and brake are designed as the protection to prevent wet and dirt.

3.Brake Mechanism
No matter how heavy the load, the brake works instantly when operation stopped; the lining material is non-asbestos with long lifetime.

4.Dual Ratchet Pawls
Dual Ratchet Pawls are applied for extra safety purpose. In case one ratchet pawl fails, the other still maintains its mechanical brake function.

5.Load Chain Guide
Ensure the load chain proper fitting the load sheave during operation and protect the load sheave from wet and dirt.

6.Bushing
Bushing finished by surface hardened treatment and polish procedure serves to increase the mechanical efficiency and reduce the hand chain pull force.

7.Chain Stopper
Work as the lower limit to prevent over traveling during lowering the load.

8.Load Chain
Applying grade 80 alloy chain specially calibrates for manual hoists and conforms to ISO and DIN standard.

9.Upper & Lower Hooks
Hooks with hot forged and heat treatment allow to be swiveled 360゚ and are equipped with safety latch to ensure proper hooking the load.

Please visit our website "www.chengday.com.tw" for more information.
  • Place of Origin:
  • Taiwan
  • Brand:
  • Cheng Day
  • Unit Price:
  • USD Nil
  • Price Terms:
  • FOB Nil
  • Packing:
  • negotiable
  • Keywords:
  • hand chain block, manual chain block
