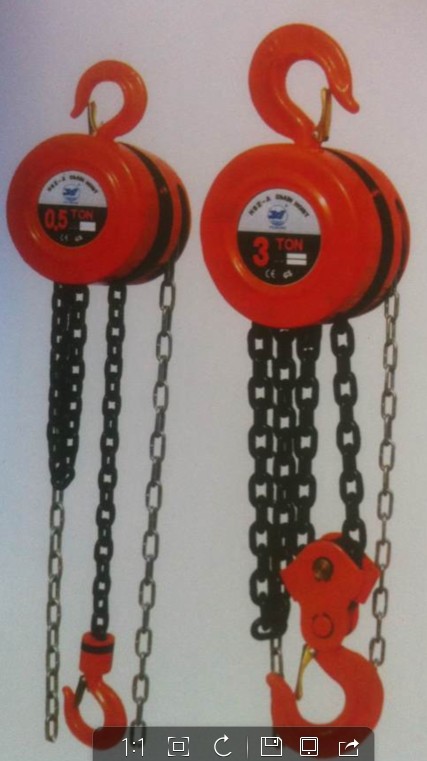

HSZ-A Series Chain Hoist Manual Hoist

The HSZ series chain block is a portable lifting device easily operated by hand. it is suitable for use in factories,,mines,farms,construction sites, wharves, docks and warehouses for in stallation of equipment, as well as for loading and unloading goods ,it is specially advantageous for lifting where no power supply is available. The chain block can be attached to a trolley of any type as a traveling chain block .It is suitable to monorail overhead conveying system , hand travelling crane and jib crane.

HSZ-A Series Chain Hoist Specification
Model HSZ-A0.5 HSZ-A1 HSZ-A1.5 HSZ-A2
Rated Load(T) 0.5 1 1.5 2
Standard Lift(m) 2.5 2.5 2.5 2.5
Test Load(T) 0.75 1.5 2.25 3
Min. Distance Between two hooks(mm) 280 300 360 380
Effort require to lifmas. Load(N) 167 314 373 314
Dia of load chain(mm) 6 6 8 6
No. of falls load chain 1 1 1 2

Dimensions(mm) A 142 142 178 142
B 126 126 142 126
C 28 24 32 34
D 142 142 178 142
Net weight(kg) 9.5 10 15 14
Extra weight per meter of extra lift(kg) 1.8 1.8 2.4 2.7
Packing Size(L*W*H)(mm*mm*mm) 25*18*17 25*17*16 26*23*17 27*20*16

Model HSZ-A3 HSZ-A5 HSZ-A10 HSZ-A20
Rated Load(T) 3 5 10 20
Standard Lift(m) 3 3 3 3
Test Load(T) 4.5 7.5 15 30
Min. Distance Between two hooks(mm) 470 600 730 1000
Effort require to lifmas. Load(N) 373 516 516 516
Dia of load chain(mm) 8 10 10 10
No. of falls load chain 2 2 4 8

Dimensions(mm) A 178 210 338 580
B 142 165 165 195
C 38 48 64 82
D 178 210 210 210
Net weight(kg) 24 36 68 150
Extra weight per meter of extra lift(kg) 3.8 5.3 9.8 19.6
Packing Size(L*W*H)(mm*mm*mm) 32*23*17 41*30*21 62*50*27 80*70*36
