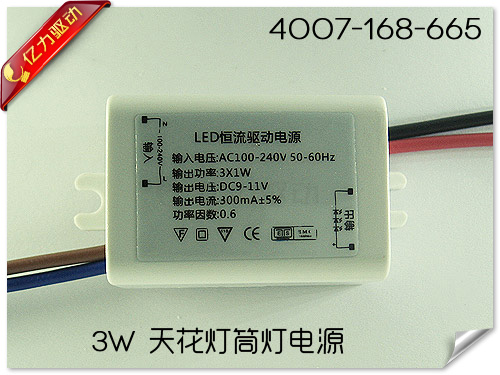

3X1W led ceiling lamp power external driving power of YL-W301A

3X1W led ceiling lamp power external driving power of YL-W301A

9-11V 300MA built-in LED ceiling lamp power supply, this series of products are designed for LED external device power supply, drive board ceiling lamp power supply, application fields: ceiling lamps, searchlights, Tongdeng, high safety! High precision, high stability, high performance price ratio, easy installation, exquisite workmanship, and supporting the use of various specifications of light; strong carrying capacity, to adapt to the lamp panel of different specifications, is built in LED industry with high ratio of performance to price constant current drive power of.
Product parameters:
Product name: 3X1W led ceiling lamp power external driving power of YL-W301A product model YL-W301A power output of 3W
Input voltage :100-265V
Output voltage: 9-11V
The output current :300mA
Conversion efficiency : 76%
Dimension :37mm*27mm*23mm
Protective characteristics of output overload / output overvoltage / short / over temperature
Life is more than or equal to 30000h
Product characteristics (Product Features)
Universal AC input 100-265V AC range
Characteristics: short circuit protection / load / overload / overvoltage
3W led ceiling lamp power external driving power of YL-W301A
No stroboscopic applicable ceiling lamp, spotlight, downlight
High accuracy high price
100% full load burn-in test
Instructions for use
This product at both ends, one end is the AC input terminal, wherein one end is the input "N" end; the other end is "L" end of input. The other end of the DC output, DC output is negative, then "LED-"; the other end is connected with the DC output positive, "LED+".
★ ★ note 1: the device power, please pay attention to the input, output the correct mounting;
★ ★ note 2: in order to avoid the LED burn, please connect the DC output drive power;
