Qingdao Hexin Da Machinery Co., Ltd

rolling machine for glass processing

rolling machine for glass processing
Item Code / Model Number:

rolling machine for glass processing rolling machine for glass processing
Specifications

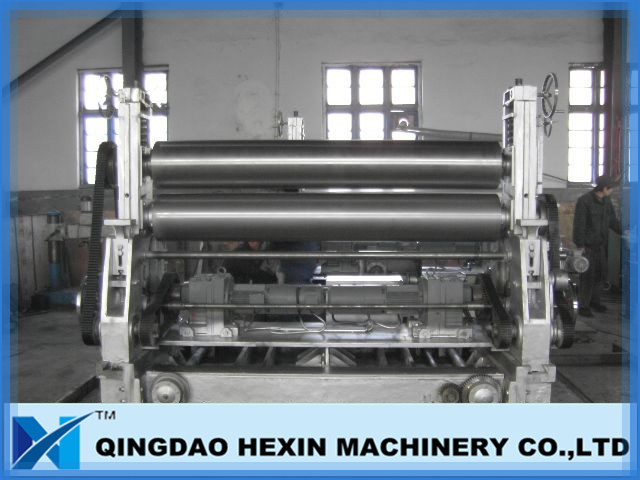

HEXIN cast glass rolling machine is used for continuous rolling of glass.
Type: Glass rolling machine
ISO:9001:2008

HEXIN™ cast glass rolling machine is used for continuous rolling of raw, figured and wired (armoured) glass.

With special coated transport rollers the machine is the perfect option for solar glass production.

High efficiency of our rolling machiner is guaranteed by the solid construction and the smooth, precise operation.

The cast glass rolling machine is available in working widths up to 2,700 mm and a maximum roller diameter of 300 mm. A wide range of adjustments enable the adaptation of the cast glass rolling machine to the various melting furnace conditions, melting capacity: from 60 tons up to approx. 150 to/day.For more information about our quality glass rolling machinery, pls contact our sales or agent.

Specification of glass rolling machine:
1.Amount of Roll:2/3/4;
2.Diameter of Roll: 230mm;
3.Work Length:630mm;
4.Roll linear Speed:4.5-18.06(m/min);
5.Max distance of roll:8mm;
6.Speed Ratio:1:1:1;
7.Power of Motor: 15(KW)
8.Application: glass production;
9.Thickness of the article of manufacture: 0.1-10mm;
10.Width of the article of manufacture:
11.Tolerance of the thickness: ±0.01 mm;
12.Boundary Dimensions:
13.Model:
14.Feeding Speed:
15.Steady turning speed of glass:
16.Glass types for production: Decorative glass, furniture glass, rolled glass, microcrystalline glass, special glass
17.Types of production line:Embossed glass, photovoltaic glass;
18.Drilling Diameter:140-180 mm;
  • Place of Origin:
  • China
  • Brand:
  • HEXIN
  • Unit Price:
  • USD 13000-60000
  • Price Terms:
  • FOB CHINA
  • Packing:
  • seaworthy packing
  • Payment Terms:
  • L/C;T/T;Cash
  • Delivery Time:
  • 50 days
  • Min Order Quantity:
  • 1 pcs
  • Standard / Certificates:
  • ISO9001
  • Keywords:
  • glass processing
