Sell High Frequency Slip Ring
Sell High Frequency Slip RingContinuous Selling Item
Sell High Frequency Slip Ring

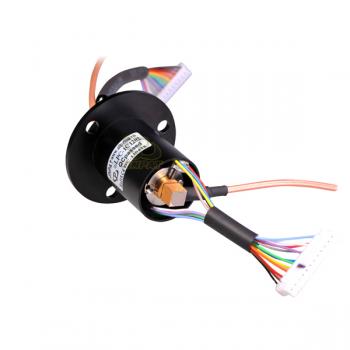

High frequency slip ring is used for continuous rotary device, which transfers the Hi-frequency signal between the fixed part and the rotary part. The LPC-1C-1202-A high frequency slip ring is a special unit with RF Coaxial Connector. The Bandwidth could achieve 50MHz to 3GHz.
Specification:
Operating Speed: 50rpm max
Number of Circuits:12
Voltage: 240 VAC/DC
Current Rating: 2 amps per circuit
Contact Material: Gold to Gold
Insulation Resistance: 100mΩ@500VDC
Electric Noise: ≤50mΩ
Specific Impedance: ≤50mΩ
IP: IP54
Cable size: RJ316/U (Flexible Coaxial Cable)
Connector Model: SMA/BNC/TNC/SMB
Contact Material: Metal
Application:
CCTV Camera System
Radar Antenna and military system
Specification:
Operating Speed: 50rpm max
Number of Circuits:12
Voltage: 240 VAC/DC
Current Rating: 2 amps per circuit
Contact Material: Gold to Gold
Insulation Resistance: 100mΩ@500VDC
Electric Noise: ≤50mΩ
Specific Impedance: ≤50mΩ
IP: IP54
Cable size: RJ316/U (Flexible Coaxial Cable)
Connector Model: SMA/BNC/TNC/SMB
Contact Material: Metal
Application:
CCTV Camera System
Radar Antenna and military system
- Place of Origin:
- China
- Brand:
- JINPAT
- Unit Price:
- USD 1
- Port:
- FOB Yantian
- Packing:
- Carton
- Payment Terms:
- L/C;T/T;D/D
- Delivery Time:
- 20
- Min Order Quantity:
- 1
- Standard / Certificates:
- FCC CE RoHS
