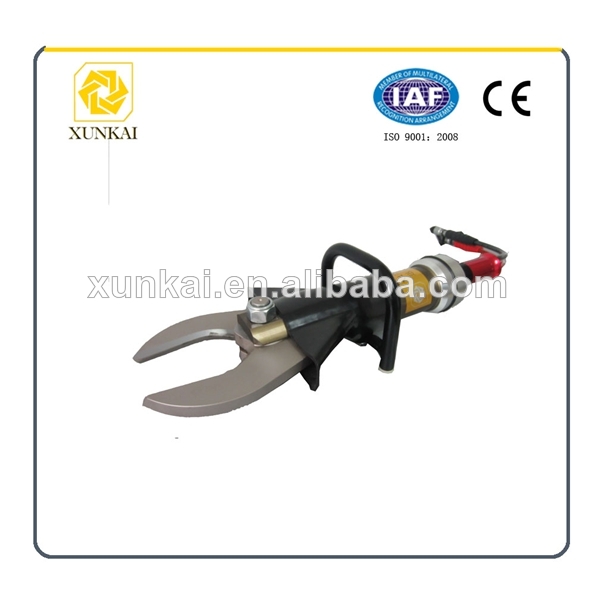

hyderulic cutter
hyderulic cutterItem Code / Model Number:
hyderulic cutter
Application
#1.High-way traffic accidents, railway accident rescue;
#2.Earthquake, buildings collapse, fire disaster and shipwreck rescue;
#3.Firefighting emergency rescue.
Features
#1.Shearing Blade adopt High-quality Heat-treated Tool steel, with surface anodized, good in wearing resistance;
#2.Cut off vehicle parts, metal structure, heterogenic steel pipe, steel plate and so on easily and quickly;
#3.With Protective cover to prevent the splash during shearing, also automatic reset manually valves, can provide safety for the operator;
#4.Blades fix on any position, no retraction to hold a rescue space;
#5.Can be used by person of both left and right hand habit;
Specification
Model XHC-420/150-A
Max. Opening Distance of Blades ≥150mm ≥5.9 in.
Rated Working Pressure 700bar 10150 psi
Max. Cutting Capacity(Q235 steel) 15mm(steel plate);Φ28mm(circle steel) 0.6 in.(steel plate);
Φ1.1 in.(circle steel)
Max. Cutting Force 420KN(42T) 92594 lbs
Opening Time without Load
(Powered by motor pump) ≤25s ≤25s
Closing Time without Load
(Powered by motor pump) ≤30s ≤30s
Weight(working condition) ≤13kg ≤28.7 lbs
Dimension(L*W*H) 690*210*170mm 27.2*8.3*6.7 in.
#1.High-way traffic accidents, railway accident rescue;
#2.Earthquake, buildings collapse, fire disaster and shipwreck rescue;
#3.Firefighting emergency rescue.
Features
#1.Shearing Blade adopt High-quality Heat-treated Tool steel, with surface anodized, good in wearing resistance;
#2.Cut off vehicle parts, metal structure, heterogenic steel pipe, steel plate and so on easily and quickly;
#3.With Protective cover to prevent the splash during shearing, also automatic reset manually valves, can provide safety for the operator;
#4.Blades fix on any position, no retraction to hold a rescue space;
#5.Can be used by person of both left and right hand habit;
Specification
Model XHC-420/150-A
Max. Opening Distance of Blades ≥150mm ≥5.9 in.
Rated Working Pressure 700bar 10150 psi
Max. Cutting Capacity(Q235 steel) 15mm(steel plate);Φ28mm(circle steel) 0.6 in.(steel plate);
Φ1.1 in.(circle steel)
Max. Cutting Force 420KN(42T) 92594 lbs
Opening Time without Load
(Powered by motor pump) ≤25s ≤25s
Closing Time without Load
(Powered by motor pump) ≤30s ≤30s
Weight(working condition) ≤13kg ≤28.7 lbs
Dimension(L*W*H) 690*210*170mm 27.2*8.3*6.7 in.
