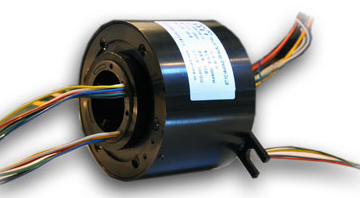

Panlink slip ring (high speed series)
Panlink slip ring (high speed series)
Panlink slip ring (high speed series)
Product introduction
PSR-TSH slip ring is a standard , off-the-shelf series product with end shaft install , it use gold contact metal at the rotary interface, specify design for high speed no need cool,Color-coded lead wires or connector for both the stator and rotor for simplifiedele electrical connections.
Using a specify design for high speed, the PSR-TSH provides smoother running , lower torque , low contact wear rates than competitive slip ring,Cooling system to ensure more long life and more exactly performmance, Any through bore size from 3 -100mm and OD 78mm.
Specification
Rated voltage: 380VAC
Rated current: 2A/way,10A/way,15A/way
Through bore: 25mm ( any through bore for optional)
Outer Diameter: 78mm
Circuit No: 1-100 way
Speed:5000-10000Rpm
Feature
1) Compact design with small size, can meet harsh space requirements;
2) Long life design with specified technology for high speed slip ring;
3) Support thermocouple,high speed digital signal and sensor signal transfering stably;
4) Stainless steel housing with sealing for harsh environment.
Typical Application
1) Aerospace & Military Rotary Equipment
2) Metallurgical Equipment / centrifugal machine
3) Test table
4) Military vehicle-mounted system
Environment
Operation temperation: -40℃~80℃
Mechanical vibration: MIL-SID-810E
Relative humidity: 60%
PSR-TSH slip ring is a standard , off-the-shelf series product with end shaft install , it use gold contact metal at the rotary interface, specify design for high speed no need cool,Color-coded lead wires or connector for both the stator and rotor for simplifiedele electrical connections.
Using a specify design for high speed, the PSR-TSH provides smoother running , lower torque , low contact wear rates than competitive slip ring,Cooling system to ensure more long life and more exactly performmance, Any through bore size from 3 -100mm and OD 78mm.
Specification
Rated voltage: 380VAC
Rated current: 2A/way,10A/way,15A/way
Through bore: 25mm ( any through bore for optional)
Outer Diameter: 78mm
Circuit No: 1-100 way
Speed:5000-10000Rpm
Feature
1) Compact design with small size, can meet harsh space requirements;
2) Long life design with specified technology for high speed slip ring;
3) Support thermocouple,high speed digital signal and sensor signal transfering stably;
4) Stainless steel housing with sealing for harsh environment.
Typical Application
1) Aerospace & Military Rotary Equipment
2) Metallurgical Equipment / centrifugal machine
3) Test table
4) Military vehicle-mounted system
Environment
Operation temperation: -40℃~80℃
Mechanical vibration: MIL-SID-810E
Relative humidity: 60%
- Place of Origin:
- China
- Brand:
- PANLINK
- Unit Price:
- USD 2
- Port:
- FOB shenzhen
- Packing:
- 10pcs with one carton
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 10
- Min Order Quantity:
- 10
- Standard / Certificates:
- CE;ROHS.ISO9001
