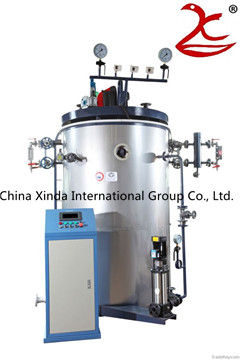

Vertical Steam Boiler

Vertical Steam Boiler
Vertical Steam Boiler Characteristics
1. Traditional classical structure, install, cooperate and maintain easily.
2. The whole system is compact and reasonable, assembly integration is easy, the demand for running environment is low.
3. Technology is mature and stable, it is safe and reliable for its running.
4. Product layout is reasonable, there are two styles of combustion equipment, fixed grate and activities grate. Meet different customers' requirements.
5. Fuel is of widely adaptability and low operation cost.
6. Product specifications are in order, hating form and parameters of heating medium can satisfy different thermal environment.
7. System adopts the modular design principle, facilitate product upgrade, improve and re-construction.






Vertical Steam Boiler Specification
Model Evaporation
(t/h) Rated pressure(mpa) Steam temperature Feed-water temperature(℃) Fuel Fuel consumption(kg/h) Exhaust temperature Thermal efficiency(%) Environmental protection index
LSH0.2-0.4-A 0.2 0.4


Saturated temperature 20 A 24 ≤210 ≥78


Conform to the requirements of a region
LSH0.3-0.4-A 0.3 0.4 20 A 35 ≤210 ≥78
LSH0.5-0.4-A 0.5 0.4 20 A 58 ≤210 ≥78
LSH0.5-0.7-A 0.5 0.7 20 A 58 ≤210 ≥78
LSH0.7-0.4-A 0.7 0.4 20 A 80.5 ≤170 ≥80
LSH0.7-0.7-A 0.7 0.7 20 A 80.5 ≤170 ≥80
LSH1-0.4-A 1 0.4 20 A 115 ≤170 ≥80
LSH1-1.0-A 1 1 20 A 115 ≤170 ≥80
