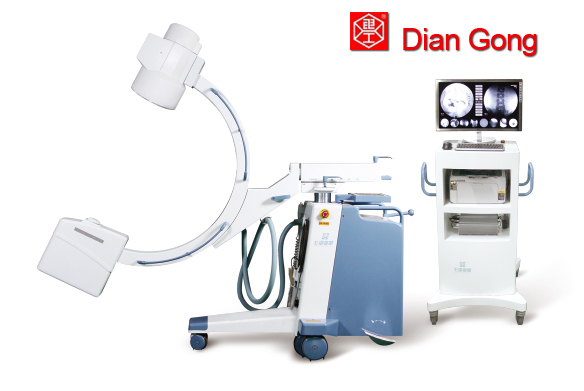

Sell Surgical C-arm X-ray Machine

Key features:
1With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.
2)10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis.
3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4)With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also available.
5) Equipped with unique block line wheels, it can avoid accident when the machine moves.
6)Large free space in arc: the space can reach 800mm,which is convenient for operation.
7)9"/6"/4.5" three fields of vision:it facilitates diagnosis of partial enlargement.
8)CCD camera with rotation function:range of camera rotation:360°.
9)Original Korean linear slide rail can make the the movement of the machine flexibly.
10)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.

Main specification
HF generator 120KV,5kW ,40kHz


Fluoroscopy mode Fluoroscopy mode40~120kv0.5~5mA
(KV manual and automatic);
Pulsd fluoroscopy 40~120kv 0,5-5mA
Boost fluoroscopy 40~120kV 5~10mA;
Photography 40~120kV 1~250mAs

X ray tube Dual-focus Rotating anode:0.3mm/0.6mm


Image intensifier Three fields of vision 9, 6, 4.5 French Thales Brand
CCD camera 1 million pixel, Japanese Watt Brand, 360° rotation


Image system Recursive Noise Reduction
Frame freezing
Multi frame image storage
Image conversing and rotating
Screen display with image comparison

Mechanical motion specifications Verticaltravel:0-400mm Horizontaltravel:0~200mm Rotation about horizontal axis:±180°
