D1
D1, Wall Touch Panel controllerItem Code / Model Number:

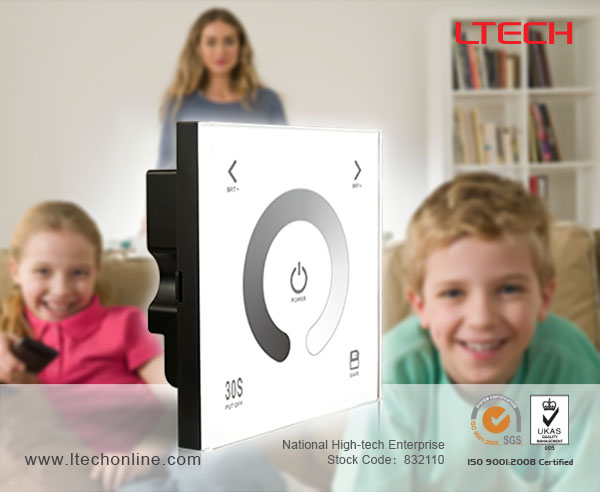

Wall Touch Panel controller
D1
D series touch panel controller
D series touch panel controllers(D1-D8) are wall-mounted LED controlelrs, wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Among them, D5, D6, D7 and D8 are DMX512 control panels,used for DMX512 lamps. In a word ,D series could satisfy the controlling demand for all kinds of LED lighting products.
D series touch panel controller absorts the best controlling technology from other manufacturers. to provide users with more superior items.
simple fashion and decent appearance design.
Unique structure, super easy to install/remove.
Support DMX 512 output(only D5, D6, D7, D8), control DMX lamps.
Support 4 zones(Just D5, D6, D7, D8), different zones can be in different control.
high accuracy touching IC+special post-processing ,the touching accuracy is highly strengthened.
Fool type operation, easy to use.
Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.
Pioneered T-PWM dimming technology+ 4096 gray scale makes an almost perfect dimming/ color-mixing performance
Single zone series
D1
Input voltage DC12V~DC24V
Max current load 4A x3CH Max 12A
Max output power 144W/288W(12V/24V)
Gray scale level 4096
Working temperature -20℃~60℃
Dimensions L86×W86×H36mm
Package Size L112×W112×H48mm
Weight (N.W.) 210g
D series touch panel controllers(D1-D8) are wall-mounted LED controlelrs, wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Among them, D5, D6, D7 and D8 are DMX512 control panels,used for DMX512 lamps. In a word ,D series could satisfy the controlling demand for all kinds of LED lighting products.
D series touch panel controller absorts the best controlling technology from other manufacturers. to provide users with more superior items.
simple fashion and decent appearance design.
Unique structure, super easy to install/remove.
Support DMX 512 output(only D5, D6, D7, D8), control DMX lamps.
Support 4 zones(Just D5, D6, D7, D8), different zones can be in different control.
high accuracy touching IC+special post-processing ,the touching accuracy is highly strengthened.
Fool type operation, easy to use.
Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.
Pioneered T-PWM dimming technology+ 4096 gray scale makes an almost perfect dimming/ color-mixing performance
Single zone series
D1
Input voltage DC12V~DC24V
Max current load 4A x3CH Max 12A
Max output power 144W/288W(12V/24V)
Gray scale level 4096
Working temperature -20℃~60℃
Dimensions L86×W86×H36mm
Package Size L112×W112×H48mm
Weight (N.W.) 210g
- Place of Origin:
- China
- Brand:
- Ltech
- Unit Price:
- USD 1
- Price Terms:
- FOB Zhuhai
- Packing:
- neutral packing
- Payment Terms:
- T/T
- Delivery Time:
- 3 days
- Min Order Quantity:
- 30pcs
- Standard / Certificates:
- CE, FCC, ROHS
- Keywords:
- touch panel controller, led controller
