Support Infiniband 40GBase-SR4

Support Infiniband 40GBase-SR4, RQ-M40S85C-00
Item Code / Model Number:
RQ-M40S85C-00

Support Infiniband 40GBase-SR4 Support Infiniband 40GBase-SR4
Product Description

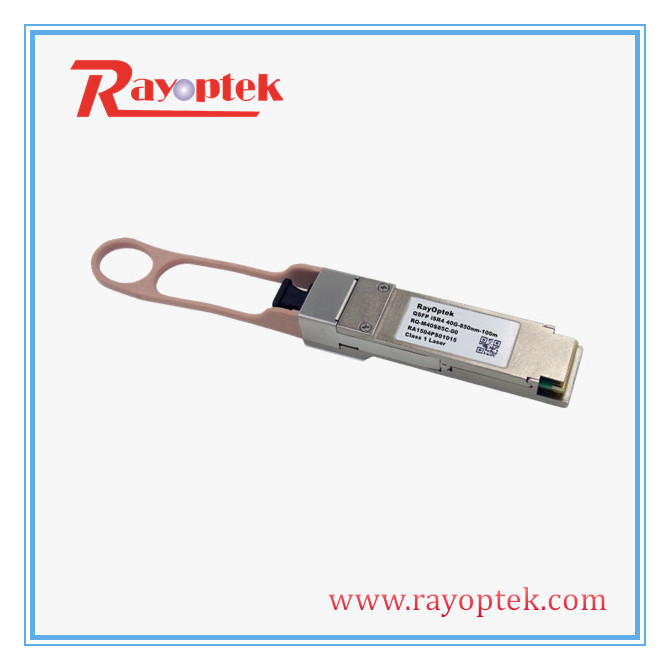

The Rayoptek RQ-M40S85C-00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand FDR/QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 100m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array.An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ iSR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Product Feature

Four-channel full-duplex transceiver modules
Transmission data rate up to 11.3Gbit/s per channel
Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
MPO connector receptacle
Built-in digital diagnostic function

Product Specification/Models

Part Number Product Description
RQ-M40S85C-00 4X10.3G QSFP+ iSR4, MPO connector, 4DDM,100M on OM3

Application

InfiniBand QDR, DDR and SDR
Proprietary High Speed Interconnections
Data Center
