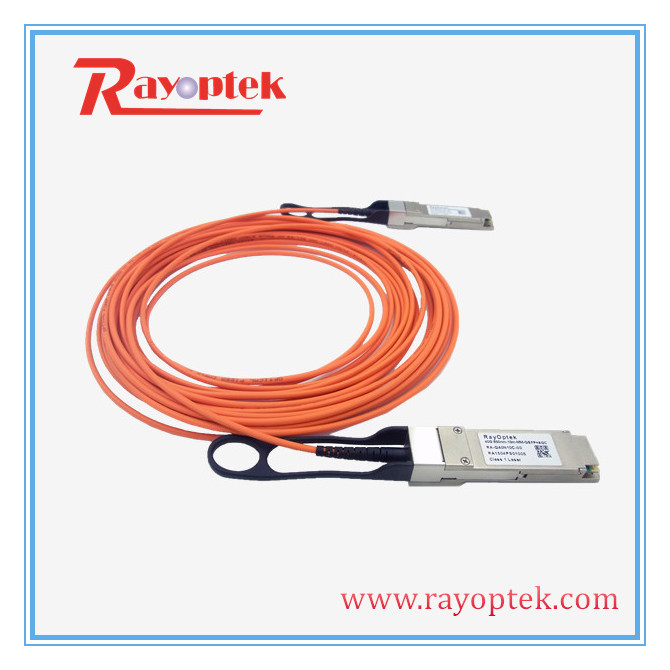

Telecom Networking AOC 40G QSFP+ Active Optic Cable

Telecom Networking AOC 40G QSFP+ Active Optic Cable
Continuous Selling Item

Telecom Networking AOC 40G QSFP+ Active Optic Cable Telecom Networking AOC 40G QSFP+ Active Optic Cable
Product Description The RayOptek QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.RayOptek QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.RayOptek QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings. Product Feature Four-channel full-duplex active optical cable Transmission data rate up to 11.3Gbit/s per channel Reliable VCSEL array technology using multimode fiber Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m Low power consumption 1.5W Operating case temperature 0°C to +70°C 3.3V power supply voltage RoHS 6 compliant Hot Pluggable QSFP form factor Product Specification/Models Part Number Product Description RA-Q40NXXC-00 40Gb/s QSFP+ Active Optical Cable Application Infiniband QDR/DDR/SDR Datacenter 40G Ethernet 4G/8G/10G Fibre Channel
  • Place of Origin:
  • China
  • Brand:
  • rayoptek
  • Packing:
  • 10 or 20PCS /Plastic tray
  • Payment Terms:
  • ;T/T
  • Delivery Time:
  • within 7~10 working days
  • Min Order Quantity:
  • 1pcs

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • China
  • Employee Count:
  • 50-100
  • Established Year:
  • 2011
  • Yearly Sales Volume:
  • US$1M - US$5M

Contact Information

  • Company Name:
  • Wuhan RayOptek Co.,Ltd
  • Country:
  • China
  • Address:
  • Overseas Talents Building block B-301,No.999 Gao Xin Road, Wuhan, China
  • Website:
  • http://www.rayoptek.com
