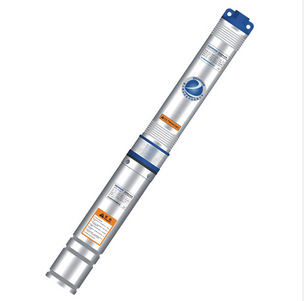

3 Inch Deep Well Submersible Pump for Use in Civil
3 Inch Deep Well Submersible Pump for Use in Civil, 75QJDItem Code / Model Number:
75QJD
3 Inch Deep Well Submersible Pump for Use in Civil
3 Inch Deep Well Submersible Pump for Use in Civil
Feature:
1. Healthy, Energy-saving
2. With design of low voltage and ultra strong overload configuration, suit for kinds of environments.
Operating Limits:
Max. liquid temperature: +35ºC
Max. sand content: 300g/m3
Max. immersion depth: 60m
PH of liquid: 6.0-8.0
Motor:
Degree of protection: IP68
Insulation Class: F
Temperature rise: ≤25K
Run with controller
Food grade machine oil
Applications:
Water supply from wells or reservoirs
For use in civil
For garden use and pond culture, fountains etc.
Model Introduction:
75 QJD 1.5 - 29/10 - 0.25
① ② ③ ④ ⑤
① Well diameter
② Rated capacity
③ Rated head
④ Stage
⑤ Power
Model Of Deep Well Submersible Pump To Choose:
75QJD1.5-20/7-0.18 0.18 0.25
75QJD1.5-29/10-0.25
75QJD1.5-41/14-0.37
75QJD1.5-58/20-0.55
75QJD1.5-82/28-0.75
About Us:
Since the year of 2000. we have been specialized in producing deep well submersible pump(3" to 6"), solar pump, stainless steel SP submersible pump, submersible pump, corrosion-proof pump, sewage pump,self priming pump, jet pump, surface pump, domestic pump, suction pump, pressure pump etc. To know details, don't hesitate to contact us. Welcome to visit our website: www.zensenproducts.com
Feature:
1. Healthy, Energy-saving
2. With design of low voltage and ultra strong overload configuration, suit for kinds of environments.
Operating Limits:
Max. liquid temperature: +35ºC
Max. sand content: 300g/m3
Max. immersion depth: 60m
PH of liquid: 6.0-8.0
Motor:
Degree of protection: IP68
Insulation Class: F
Temperature rise: ≤25K
Run with controller
Food grade machine oil
Applications:
Water supply from wells or reservoirs
For use in civil
For garden use and pond culture, fountains etc.
Model Introduction:
75 QJD 1.5 - 29/10 - 0.25
① ② ③ ④ ⑤
① Well diameter
② Rated capacity
③ Rated head
④ Stage
⑤ Power
Model Of Deep Well Submersible Pump To Choose:
75QJD1.5-20/7-0.18 0.18 0.25
75QJD1.5-29/10-0.25
75QJD1.5-41/14-0.37
75QJD1.5-58/20-0.55
75QJD1.5-82/28-0.75
About Us:
Since the year of 2000. we have been specialized in producing deep well submersible pump(3" to 6"), solar pump, stainless steel SP submersible pump, submersible pump, corrosion-proof pump, sewage pump,self priming pump, jet pump, surface pump, domestic pump, suction pump, pressure pump etc. To know details, don't hesitate to contact us. Welcome to visit our website: www.zensenproducts.com
- Place of Origin:
- China
- Brand:
- V-Pump
- Packing:
- exported carton
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 25 days
- Min Order Quantity:
- 1pcs
- Standard / Certificates:
- ISO: 9001
- Keywords:
- deep well submersible pump, deep well pump, submersible pump
