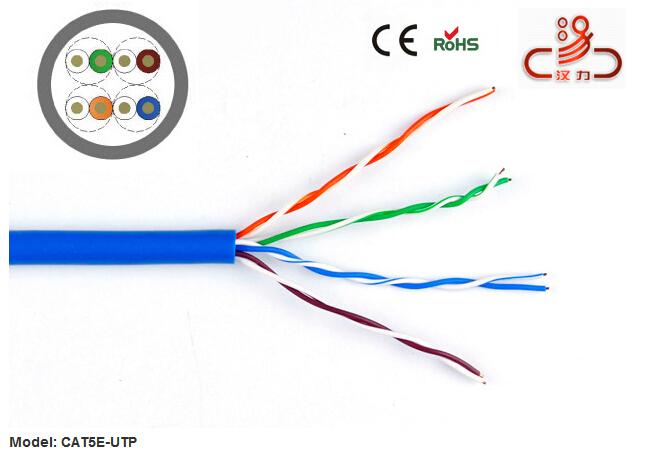

UTP CAT5E
UTP CAT5EItem Code / Model Number:
UTP CAT5E
UTP CAT5E
4pairs 4*2*0.50mm pure copper or CCA or CCS, PE insulation 1.02mm+ rip code+ PVC jacket, light grey or white
Conductor:
Material: solid bare copper
Number of pairs: 4 pairs
AWG: 24awg
Conductor diameter: 0.50±0.003mm
Insualtion:
Material: HDPE and FRPE
Diameter: 0.924±0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
FILLING: petrolatum or without jelly filled
Sheath:
Material: PVC
Nominal diameter: 5.5±0.2mm
Average thickness: 0.55mm
Operating temperature range: -20 to 75°C
Reference standard: TIA/EIA568B, IEC/ISO11801
Package:305meters/roll
4pairs 4*2*0.50mm pure copper or CCA or CCS, PE insulation 1.02mm+ rip code+ PVC jacket, light grey or white
Conductor:
Material: solid bare copper
Number of pairs: 4 pairs
AWG: 24awg
Conductor diameter: 0.50±0.003mm
Insualtion:
Material: HDPE and FRPE
Diameter: 0.924±0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
FILLING: petrolatum or without jelly filled
Sheath:
Material: PVC
Nominal diameter: 5.5±0.2mm
Average thickness: 0.55mm
Operating temperature range: -20 to 75°C
Reference standard: TIA/EIA568B, IEC/ISO11801
Package:305meters/roll
- Place of Origin:
- China
- Brand:
- HANLLI
- Unit Price:
- USD 17
- Price Terms:
- FOB Lingbo
- Payment Terms:
- L/C;T/T
- Min Order Quantity:
- 100pcs
- Keywords:
- utp cat5e, lan cable utp cat5e, utp cat5e lan cable
