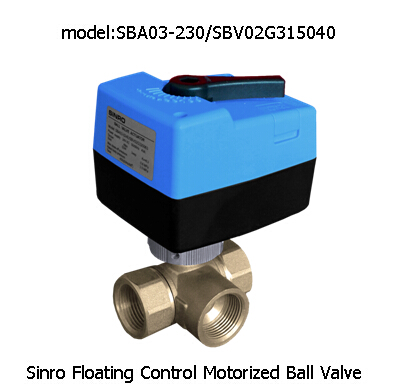

3-way Floating Control Motorized Ball Valve
3-way Floating Control Motorized Ball Valve, 90329000Item Code / Model Number:
90329000
3-way Floating Control Motorized Ball Valve
Sinro motorized ball valve is mainly used in central air-conditioning system, heating system, water treatment, and production industry to control the flow of chilled/hot medium.
Model: SBA03-230/SBV02G315040
The main technical parameters:
Valve type: 3-way, characterized opening
Control signal: floating control
Size of the valve port : 1/2"
Connection: BSP pipe
Kv factor: Kv4.0
Closing-off pressure: 0.6Mpa
Power supply: 230VAC
Power consumption: 5VA
Current frequency: 50/60Hz
Torque: ≥4Nm
Running time: ≈45s(50Hz/90°)
Media temperature: 2ºC~94ºC
IP class: IP54
Material:
Cover: fireproof ABS engineering plastic
Chassis: fireproof Reinforced nylon PA6-110
Gear:POM (polyoxymethylene) + brass
HPb59-1 + iron-base powder metallurgy
Valve body: forged brass
Valve ball: forged brass
Valve seat: PTFE(Poly tetrae fluoro ethylene)
Valve stem: 304 stainless steel
O-ring: NBR
Model: SBA03-230/SBV02G315040
The main technical parameters:
Valve type: 3-way, characterized opening
Control signal: floating control
Size of the valve port : 1/2"
Connection: BSP pipe
Kv factor: Kv4.0
Closing-off pressure: 0.6Mpa
Power supply: 230VAC
Power consumption: 5VA
Current frequency: 50/60Hz
Torque: ≥4Nm
Running time: ≈45s(50Hz/90°)
Media temperature: 2ºC~94ºC
IP class: IP54
Material:
Cover: fireproof ABS engineering plastic
Chassis: fireproof Reinforced nylon PA6-110
Gear:POM (polyoxymethylene) + brass
HPb59-1 + iron-base powder metallurgy
Valve body: forged brass
Valve ball: forged brass
Valve seat: PTFE(Poly tetrae fluoro ethylene)
Valve stem: 304 stainless steel
O-ring: NBR
- Place of Origin:
- China
- Brand:
- Sinro
- Unit Price:
- USD 66
- Price Terms:
- EXW Guangzhou
- Packing:
- standard export carton, can do package upon clients' requirements
- Payment Terms:
- T/T
- Delivery Time:
- 20 days
- Min Order Quantity:
- 50pcs
- Standard / Certificates:
- CE, UL, CSA
- Keywords:
- ball valve, motorized valve, zone valve
