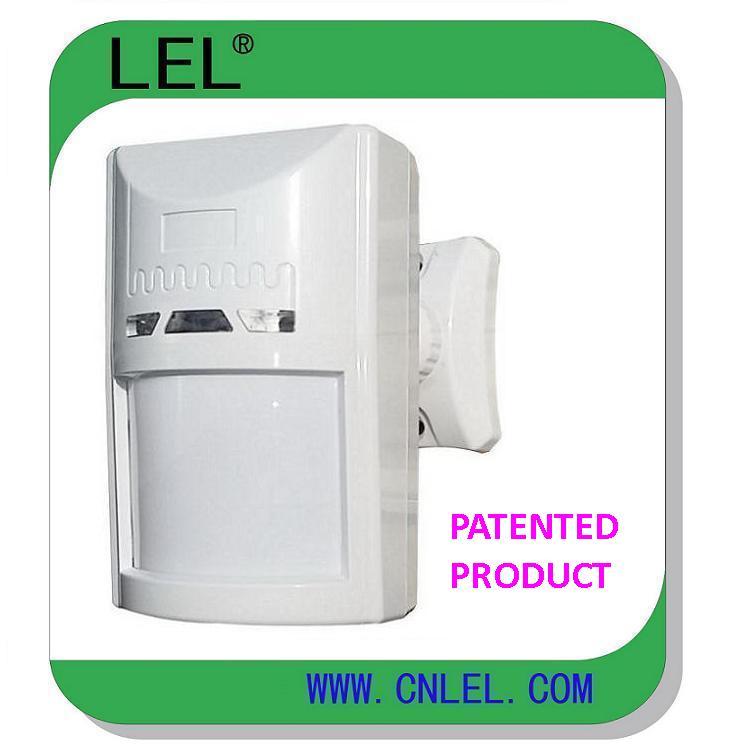

High Sensitivity Wide Angle Pir Motion Sensor/Detector with Patent
High Sensitivity Wide Angle Pir Motion Sensor/Detector with Patent, LPS-W12Item Code / Model Number:
LPS-W12
High Sensitivity Wide Angle Pir Motion Sensor/Detector with Patent
Product Specifications:
Detecting Distance(Indoor):12 m
Detecting Angle:Wide Angle 110°
Sensor:Dual Pyroelectric Infrared Sensor
Digital Anti-White light Intensity:≥6500LUX
Operating Voltage:DC10~24V
Current Consumption:≤30mA(12VDC)
Working Temperature: -10℃~+50℃
Relative Humidity: ≤ 95%
Installation:Plug-Pull & Wall-Mounted
Installation Height: 2.0~2.4m
Exterior Dimension:95mm X 60mm X 52mm
Weight:Detector: 78g/pc, Stand:26g/pc
Product Features:
※ Novel and Stylish appearance, be awarded Design Patent Certificate by State Intellectual Property Office of China
※ Optic Plane Fresnel Lens, greatly reduce light loss, achieve excellent focusing effect
※ Intelligent Chip: With 8 Bit High Performance MCU control and AGC circuit, highly increase detecting sensitivity
※ Dual Enviromental Temperature Compensation Technology, super Anti False Alarm
※ LED on/off Selectable
※ Pulse Count 1P and 2P Optional, for users choosing detecting sensitivity
※ Exclusive Down-looking Window Design , totally eliminate detecting blind zones
※ Our specially equipped Plug-Pull stand for you fulfilling Convenient & Easy Installation
Detecting Distance(Indoor):12 m
Detecting Angle:Wide Angle 110°
Sensor:Dual Pyroelectric Infrared Sensor
Digital Anti-White light Intensity:≥6500LUX
Operating Voltage:DC10~24V
Current Consumption:≤30mA(12VDC)
Working Temperature: -10℃~+50℃
Relative Humidity: ≤ 95%
Installation:Plug-Pull & Wall-Mounted
Installation Height: 2.0~2.4m
Exterior Dimension:95mm X 60mm X 52mm
Weight:Detector: 78g/pc, Stand:26g/pc
Product Features:
※ Novel and Stylish appearance, be awarded Design Patent Certificate by State Intellectual Property Office of China
※ Optic Plane Fresnel Lens, greatly reduce light loss, achieve excellent focusing effect
※ Intelligent Chip: With 8 Bit High Performance MCU control and AGC circuit, highly increase detecting sensitivity
※ Dual Enviromental Temperature Compensation Technology, super Anti False Alarm
※ LED on/off Selectable
※ Pulse Count 1P and 2P Optional, for users choosing detecting sensitivity
※ Exclusive Down-looking Window Design , totally eliminate detecting blind zones
※ Our specially equipped Plug-Pull stand for you fulfilling Convenient & Easy Installation
- Place of Origin:
- China
- Brand:
- LEL
- Unit Price:
- USD 5.81
- Price Terms:
- FOB Shenzhen
- Packing:
- Poly Bag + White Box + Outer Carton, or according to customers' package
- Payment Terms:
- T/T
- Delivery Time:
- 15 days
- Min Order Quantity:
- 10 units
- Standard / Certificates:
- Design Patent Certificate
- Keywords:
- pir sensor, pir motion sensor, pir motion detector
