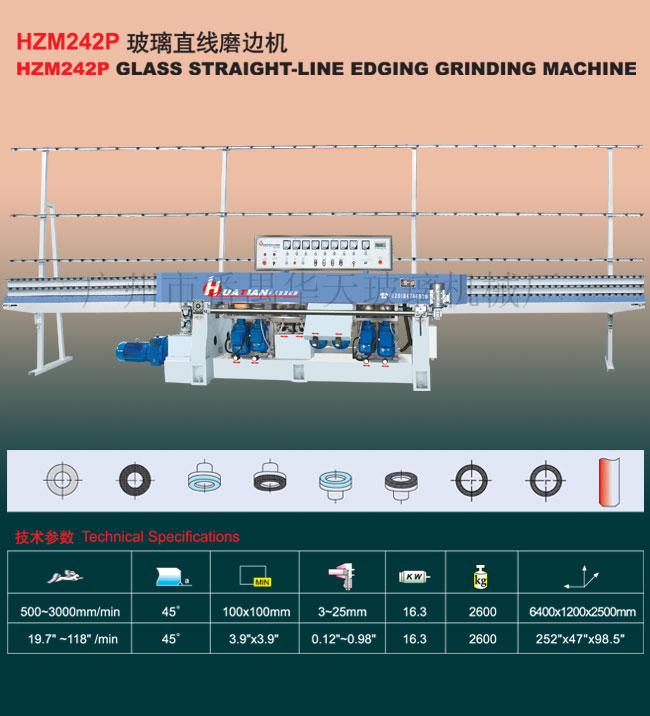

Hzm242p Glass Straight-line Edging Machine Tn1
Hzm242p Glass Straight-line Edging Machine Tn1, HZM242PItem Code / Model Number:
HZM242P
Hzm242p Glass Straight-line Edging Machine Tn1
Feature:
This machine is suitable for grinding flat glass straight-line edges and corners of different size and thickness. It adopts stepless speed controller to adjust the processing speed, Programmable Logic Controller (PLC) has clamping system for fully automatic or manual operation. Display glass processing thickness and length by LCD. Rough grinding, fine grinding and polishing can be finished in one process. Easy operation and high efficiency.
Technical Specifications:
1. The number of grinders: 8
2. Grinding speed : 500 ~ 3000mm/min
3. Angle of arris : 45°
4. Glass thickness: 3 ~ 25mm
5. Size of processed glass : Max: 3000 x 3000mm Min: 100 x 100mm
6. Power : 16.3KW
7. Weight : 2600 KG
8. Size : 6400 x 1200 x 2500mm
This machine is suitable for grinding flat glass straight-line edges and corners of different size and thickness. It adopts stepless speed controller to adjust the processing speed, Programmable Logic Controller (PLC) has clamping system for fully automatic or manual operation. Display glass processing thickness and length by LCD. Rough grinding, fine grinding and polishing can be finished in one process. Easy operation and high efficiency.
Technical Specifications:
1. The number of grinders: 8
2. Grinding speed : 500 ~ 3000mm/min
3. Angle of arris : 45°
4. Glass thickness: 3 ~ 25mm
5. Size of processed glass : Max: 3000 x 3000mm Min: 100 x 100mm
6. Power : 16.3KW
7. Weight : 2600 KG
8. Size : 6400 x 1200 x 2500mm
- Place of Origin:
- China
- Brand:
- Huatian
- Packing:
- Poly bag or as request
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- 30% deposit, 70% before shipping the goods by TT
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1 SET
- Standard / Certificates:
- CE
- Keywords:
- glass edging machine, edging machine, glass machinery
