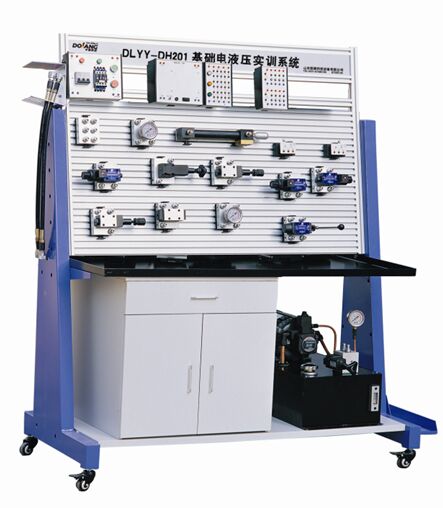

Basic Electro Hydraulic Training System

DLYY-DH201 type hydraulic training device, is design, research and develop according to experimental teaching outline of the national college “hydraulic transmission” for guidance, and combine with requirements of vocational training and professional further study to the fluid drive. This training device uses operating board of the open structure, all kinds of hydraulic components can be flexible install in operation board, connect with hydraulic pressure tube between components, the quick-change connector of hydraulic hose can make training experiment is fast and safe. Besides large whole set of components can be chose to upgrade!
It consists of aluminum material profile, and can be set up the system according to the different requirements, so it is easy to change the structure. Ambry that be made of special composite material is divided into the upper and lower levels, have their own independent lock system. The every component can be easily to storage.
Work station equipped with loop work board and set oil pan to convenient for cleaning equipment.
Four caster wheel with crack slot in order to move and install. Due to the point and height is adjustable, convenient for efficient experiment. Panel grooves gap is 25 mm, can easily move all kinds of components inserted on it.
Experiment table dimension：1360（length）×650（width）×1650（height）
Aluminium panel dimension：1200（length）×600（width）
Groove gap：25mm
Aluminum wood cabinet：1 piece
Caster with crack groove: 4 pieces
