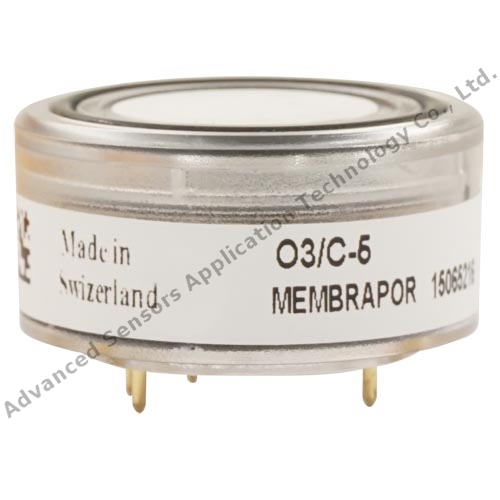

Membrapor Electrochemical Ozone Sensor O3/C-5
Membrapor Electrochemical Ozone Sensor O3/C-5, O3/C-5Item Code / Model Number:
O3/C-5
Membrapor Electrochemical Ozone Sensor O3/C-5
O3/C-5
MEASUREMENT
【Operation Principle】3-Electrode Electrochemical
【Nominal Range】0-5ppm
【Maximum Overload】 50 ppm
【Inboard Filter】-
【Resolution(Electronics dependent)】< 0.02 ppm
【T90 Response Time】< 60 sec
【Typical Baseline Range (pure air, 20°C)】< 0.1
【Maximum Zero Shift (+20°C to +40°C)】0.1ppm
【Repeatability】< 5 % of signal
【Output Linearity】 Linear
【Gain】-
ELECTRICAL
【Rec. Load Resistor】10 Ohm
【Bias (V_Sens-V_Ref)】not recommended
【Conformity to RoHS directive】RoHS Compliance
ENVIRONMENTAL
【Relative Humidity Range】15 % to 90 % R.H. non-condensing
【Temperature Range】-20 °C to 50 °C
【Pressure Range】Atmospheric ± 10%
【Pressure Coefficient】N.D.
【Humidity Effect】none
LIFETIME
【Expected Operation Life】2 years in air
【Expected Long Term Output Drift in air】N.D.
【Filter Life】-
【Storage Life】6 months in container
【Rec. Storage Temperature】5 °C – 20 °C
【Warranty Period】12 months from date of dispatch
Performance data conditions: 20 °C, 50% RH, 1013 mbar
MECHANICAL
【Weight】13 g
【Position Sensitivity】None
CROSS-SENSITIVITY DATA
Interfering Gas Concentration Reading
CO 200 ppm 0 ppm
H2 200 ppm 0 ppm
SO2 5 ppm 0 ppm
H2S No data yet
NO 35 ppm 0 ppm
NO2 5 ppm 5 ppm
C2H4 100 ppm 0 ppm
Cl2 5 ppm 4 ppm
MEASUREMENT
【Operation Principle】3-Electrode Electrochemical
【Nominal Range】0-5ppm
【Maximum Overload】 50 ppm
【Inboard Filter】-
【Resolution(Electronics dependent)】< 0.02 ppm
【T90 Response Time】< 60 sec
【Typical Baseline Range (pure air, 20°C)】< 0.1
【Maximum Zero Shift (+20°C to +40°C)】0.1ppm
【Repeatability】< 5 % of signal
【Output Linearity】 Linear
【Gain】-
ELECTRICAL
【Rec. Load Resistor】10 Ohm
【Bias (V_Sens-V_Ref)】not recommended
【Conformity to RoHS directive】RoHS Compliance
ENVIRONMENTAL
【Relative Humidity Range】15 % to 90 % R.H. non-condensing
【Temperature Range】-20 °C to 50 °C
【Pressure Range】Atmospheric ± 10%
【Pressure Coefficient】N.D.
【Humidity Effect】none
LIFETIME
【Expected Operation Life】2 years in air
【Expected Long Term Output Drift in air】N.D.
【Filter Life】-
【Storage Life】6 months in container
【Rec. Storage Temperature】5 °C – 20 °C
【Warranty Period】12 months from date of dispatch
Performance data conditions: 20 °C, 50% RH, 1013 mbar
MECHANICAL
【Weight】13 g
【Position Sensitivity】None
CROSS-SENSITIVITY DATA
Interfering Gas Concentration Reading
CO 200 ppm 0 ppm
H2 200 ppm 0 ppm
SO2 5 ppm 0 ppm
H2S No data yet
NO 35 ppm 0 ppm
NO2 5 ppm 5 ppm
C2H4 100 ppm 0 ppm
Cl2 5 ppm 4 ppm
- Place of Origin:
- Switzerland
- Brand:
- Membrapor
- Unit Price:
- USD Nil
- Other Price Terms:
- Exw
- Packing:
- Factory sealed. Brand new.
- Payment Terms:
- T/T
- Delivery Time:
- Inquiry days
- Min Order Quantity:
- 1
- Standard / Certificates:
- RoHs
- Keywords:
- o3 sensor, ozone sensor, gas sensor
