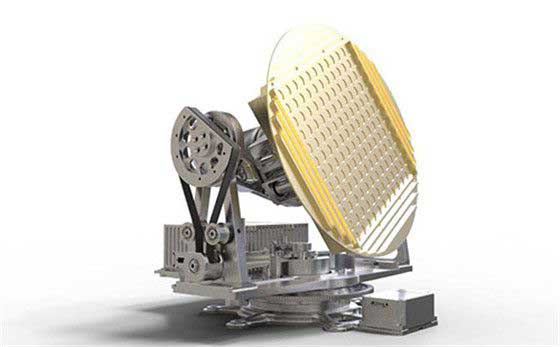

0.3m ku band Airborne VSAT Antenna

Description
UT300 uses two axial stabilized tracking mode, built in GNSS/INS altitude measurement fusion system, therefore to make sure the antenna is always pointing at the satellite in the movement.
Features
Realize Tx/Rx communication.Light weight, small volume.
Applications
Helicopter, civil aircraft, and other airplanes.

MODEL： UT300
Stabilization： 2 axis stable tracking
Antenna Type： Panel waveguide horn array
Dimension： Φ450mm×400mm
Weight： 11kg
Frequency Range： RX：12.25～12.75GHz TX：14.0～14.5GHz
Gain： RX≥29.5dBi（12.5GHz） TX≥30.5dBi（14.25GHz）
Polarization ：Linear
Cross Pol Isolation： ＞30dB
Antenna Motion Range：Azimuth：360°continuous rotation Elevation：0°～90°
Carrier Motion Range： Roll： -30°～30°,period 8s；Pitch： -30°～30°,period 8s；Yaw： 40°/s
Track Mode INS： measurement and signal tracking
Tracking Accuracy ：0.2°RMS
Initial Acquisition： ≤10s
Re-Acquisition： ≤1s
Input Power： DC18～32V，standard power consumption 55W
Operating Temperature： -55℃～70℃
