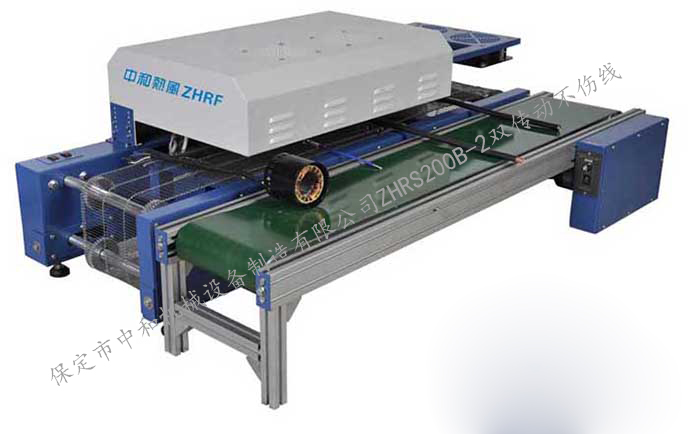

Continuous heat shrinkable machine

Continuous heat shrinkable machine, ZHRS200B-2
Item Code / Model Number:
ZHRS200B-2

Continuous heat shrinkable machine Continuous heat shrinkable machine
ZHRS200B-2 heat shrinkable tube heating machine (double transmission without wire injured),especially suitable for wire harness processing enterprises to heat shrinkable tube processing needs, double-sided heating, omnidirectional reflection of hot materials to make the heat shrinkable tubes evenly heated.The heating temperature and conveying speed are stepless adjustment, which is suitable for any length of heat shrinkable tubes.
Double side heat shrinkable tube heating shrinkage machine, double side heating temperature controllable, single and double-sided heating optional, the width of the heating zone can be adjustable, omnidirectional reflection of hot materials to make the heat shrinkable tubes evenly heated.The heating temperature and conveying speed are stepless adjustment, which is suitable for any length of heat shrinkable tubes.
Apply to:
1.Connection and contraction of PE heat shrinkable tube, PVC heat shrinkable tube and double wall heat shrinkable tube with glue.
2.Thermal shrinkage of PVC pipe.
3.Thermal contraction of capacitors, batteries, wire terminals, heat shrinkable sleeves / membranes, etc.
Characteristics:
Equipment composition
Heating machine + auxiliary conveyor + control system
The temperature of double side heating can be controlled.
This machine has a digital electronic temperature controller, which controls the temperature of the heating tube and ensures uniform temperature. It can carry out 24 hours of continuous operation to ensure maximum working efficiency.
One side or double side heating is optional
According to the heating requirements of the heat shrinkable tube, it is free to choose one side or two side heating.
The width of heating zone is adjustable
The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, save energy as much as possible and ensure the wire do not be hurt.
Heat insulation design of heating zone
The double shell design of heating area makes the inside and outside temperature separate, that is to save energy and protect the working environment.


classification Item parameter
Heater size Overall machine size(L×W×H) See picture
Control power(L×W×H) 200×150×200mm
Machinable maximum wire harness diameter 20mm
Maximum heating length 120mm
Heating area See picture
Cooling zone 200mm
Maximum transmission width 200mm
Maximum transmission height 40mm
Conveyor belt Material quality Stainless steel
Speed 1~3m/min
Transmission of motor power 25W(Stepless speed regulation)
Heating pipe Heating pipe name Infrared tube
Heating pipe power 400W,8 branches
Power supply for heating machine Power demand 220V
Power 3.4KW
Auxiliary conveyor Overall machine size(L×W×H) 1200*320*260mm
Maximum transmission width 200mm
Conveyer belt material rubber
The power of motor 25W
  • Place of Origin:
  • China
  • Brand:
  • HUAWEI
  • Unit Price:
  • USD 3175
  • Price Terms:
  • FOB TIANJIN
  • Packing:
  • PACKING WITH WOODEN BOX,ONE/BOX
  • Payment Terms:
  • T/T
  • Delivery Time:
  • 20 days
  • Min Order Quantity:
  • 1 pcs
  • Standard / Certificates:
  • CE
  • Keywords:
  • heat shrinkable casing, heat shrinkable tube heating, automatic heat shrinkable
