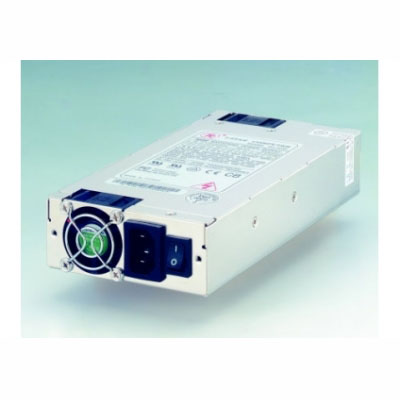

1U Single Power Supply TC-1U35

(AC to DC)
model：TC-1U35
Safety Approval
Standard 1U dimension
Two 40mm Fans
Meet CE Rohs 2.0 2011/65/EU

Description:
1. Watts:350W
2. Input:
VOLTAGE: 90~135VAC or 185~260VAC (115/230 AUTO SELECTABLE)
FREQUENCY : 50/60Hz.
INPUT CURRENT: 8A for 115V AC, 4A for 230VAC.
INRUSH CURRENT: 60A for 115VAC, 80A for 230VAC
3. Dimensions:
L x W x H: 200 x 100 x 40.5 (mm) / 7.87 x 3.94 x 1.59 (inches)
4. Others Certificates:RoHS 2.0

FEATURES:
1. Meet CE RoHS 2.0 2011/65/EU
2. Auto Select AC input.
3. Efficiency: ≧ 70﹪at full load.(Nominal Line)
4. Hold-Up Time: 16ms at maximum load & normal input voltage.
5. OVER VOLTAGE PROTECTION.
6. SHORT CIRCUIT PROTECTION.
7. OVER POWER PROTECTION.
8. NO LOAD OPERATION.
9. ENVIRONMENT TEMPERATURE
Operation Temperature: 0℃ to 40℃
Cooling: By forced air
Storage Temperature:-20℃ to 70℃
Humidity: 5 to 90﹪non-condensing.
10. RELIABILITY
MTBF OF POWER SUPPLY ELECTRONIS
100,000 hours at full load and 25℃ ambient temperature
LIFE EXPECTANCY OF FAN
40,000 hours at 40℃
