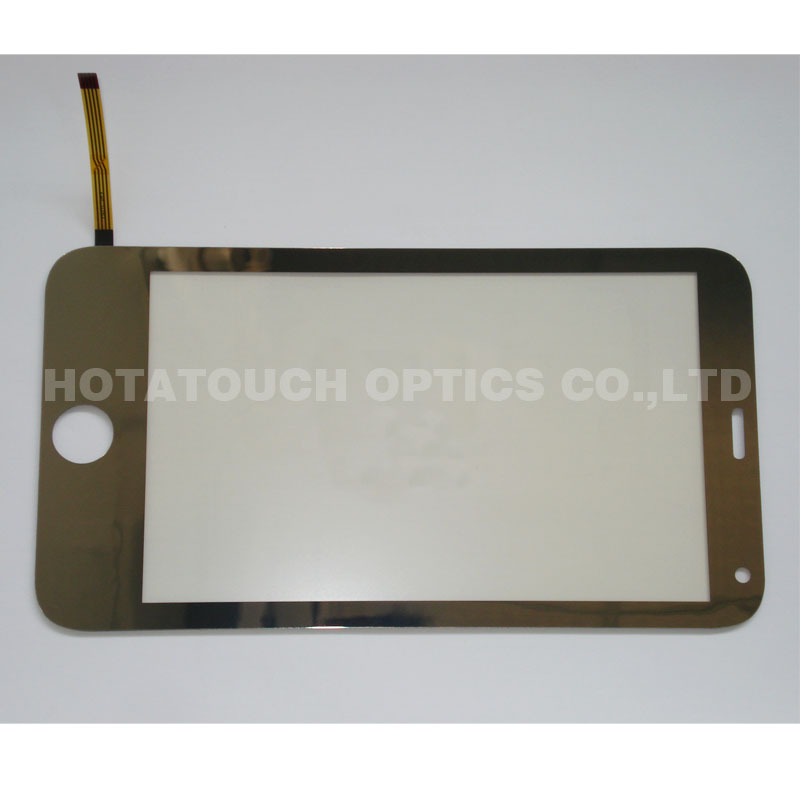

7inch Resistive Touch Screen
7inch Resistive Touch Screen, HT105195A1Item Code / Model Number:
HT105195A1
7inch Resistive Touch Screen
7inch Resistive Touch Screen Specification:
Circuit level: 5V DC, 35 MA
Available size: 7.0 inch
Construction: Lens + ITO Film + ITO Film + Toughened Glass
Resolution: 4096*4096
Touchpoint Density: φ 0.05mm pitch 3.0
Touch Activation Force: 10g - 120g
Insulation resistance: 25V DC, >20MΩ
Response Time: <10ms
Surface Hardness: 3H
Optical Clarity: >76%
Endurance Test strikes Over1million
Faceplate Surface Anti-glare coating, glare coating
Character:
----Superior image clarity with high light transmission
----Sensitive and fast response
----Durability, deep scratch resistance and abrasion
----Highest resolution
----Activated by finger, gloved hand leather or soft stylus
----More than 50 million touches in a single point
----Dirt and splash sealed capability
Circuit level: 5V DC, 35 MA
Available size: 7.0 inch
Construction: Lens + ITO Film + ITO Film + Toughened Glass
Resolution: 4096*4096
Touchpoint Density: φ 0.05mm pitch 3.0
Touch Activation Force: 10g - 120g
Insulation resistance: 25V DC, >20MΩ
Response Time: <10ms
Surface Hardness: 3H
Optical Clarity: >76%
Endurance Test strikes Over1million
Faceplate Surface Anti-glare coating, glare coating
Character:
----Superior image clarity with high light transmission
----Sensitive and fast response
----Durability, deep scratch resistance and abrasion
----Highest resolution
----Activated by finger, gloved hand leather or soft stylus
----More than 50 million touches in a single point
----Dirt and splash sealed capability
- Place of Origin:
- China
- Brand:
- Hotatouch
- Price Terms:
- FOB Shenzhen
- Packing:
- carton
- Payment Terms:
- L/C;T/T;Cash
- Min Order Quantity:
- 100pcs
- Keywords:
- 7inch resistive touch screen, touch screen panel, touch panel
