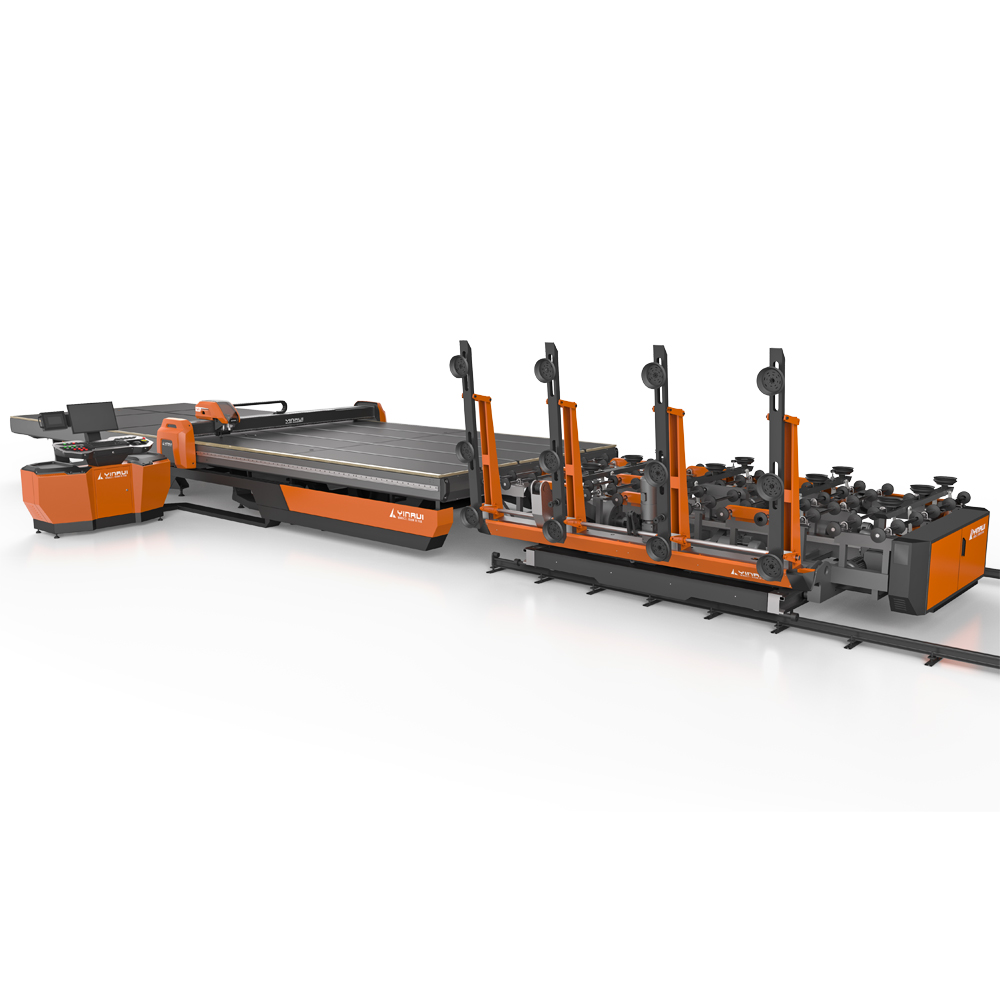

Fully automatic glass cutting machine with glass loading and breaking machine

Fully automatic glass cutting machine with glass loading and breaking machine


Generally, the glass cutting line is made of 3 machines, they are glass loading machine,glass cutting machine and glass breaking machine.

Firstly, the automatic loading machine can take the glass sheet from the glass rack to the loading table,then it will convey the glass sheet by roller to the glass cutting machine.It’s safe,quick and automatic.It can save your labor cost and improve work efficiency.

Secondly,the automatic glass cutting machine will cut the glass sheet.Our glass cutting head has our own patent,the head lifting time is less than 0.4s,no air bag,no spring, maintenance-free.Our rack,CNC controller, morot and VFD are all imported from Europe.High configuration guarantee the high precision.

Last,the air cushion glass breaking machine can move and break the glass based on avoiding scratches by breaking bar, the breaking bar is controlled by foot switch.The air volume can be adjustable.


Our Anthony brand glass cutting machine Technical parameter
Cutting speed:200mm/min
Cutting acceleration:8-10m/s²
Straight line cutting precision: ±0.15mm
Shaped cutting precision: ±0.2mm
Diagonal precision: ±0.25mm/㎡
Glass thickness:2~19mm
