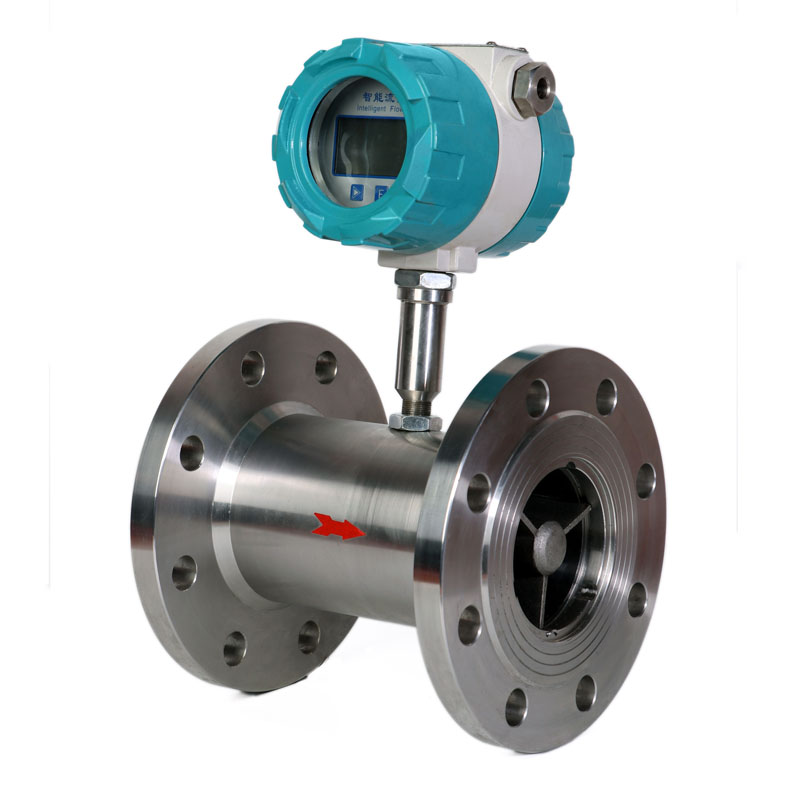

Digital turbine flow mete for oil

liquid flow meter digital display turbine oil flowmeter

Product Description

LWGY series turbine flowmeter is a kind of speed flowmeter. The sensor of turbine flow meter has the advantages of simple structure, lightweight, high precision, good reproducibility and quick response. It is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking and other industries. It is the best choice for flow measurement and energy saving.


Liquid Turbine Flow Meter Parameter

Medium: Non Corrosive Liquid( Water,Ethanol,Diesel etc)
Nominal Diameter: DN4-DN200
Span: 0.04~800m³/h
Rated Pressure: 1.6MPa~6.3MPa Max Customize to 42MPa
Accuracy Level: ±1.0%R 0.5% Selectable
Repeatablility: ±0.1%

Material:
Body/Rotor Support:SS304(SS316L optional)
Impeller:Double Phase Steel
Shaft:Stainless Steel
Bearing:Stainless Steel Ball Bearing
Process Connection: Flange/Thread
Medium Temperature:-20℃~+120℃ (Max Customize to150℃)
Ambient Temperature:-20℃~+55℃
Rated Humidity:5%~90%
Ambient Pressure:86KPa~106KPa
Power: 24VDC and 3.6V lithium battery.
Consumption: 24VDC power:<1W
Signal Output: Pulse,4-20mA,Switch Signal.
Communication: RS485,MODBUS,HART,PROFIBUS-DP
Signal wire joint: M20*1.5 or customized
Explosion Proof Grade: ExdIIBT6/ExiaIICT4
Degree of Protection: IP65


Product Uses

Turbine flow meter is suitable for liquid flow measurement. It is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking and other industries. It is an ideal meter for flow measurement and energy saving.
