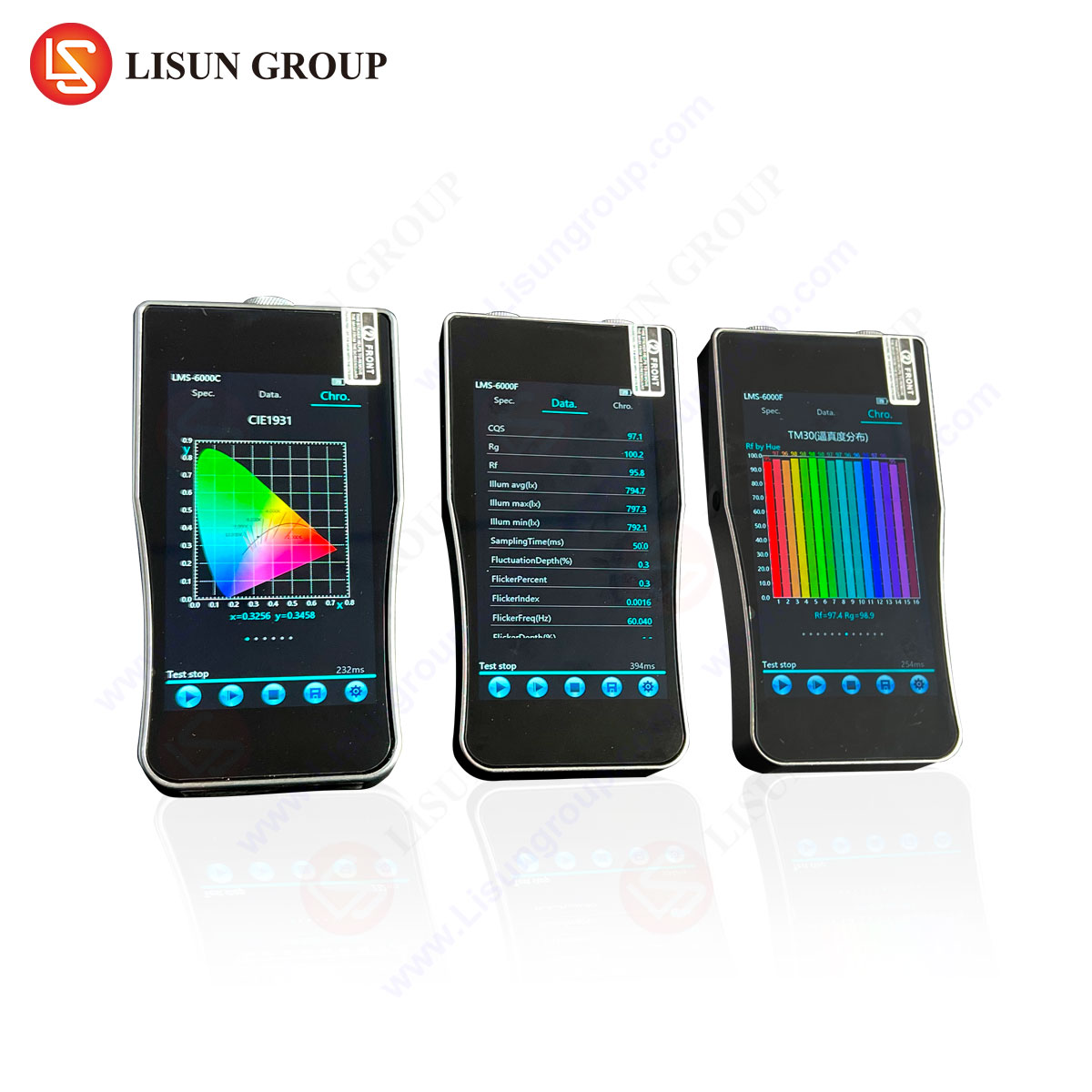

Portable CCD Spectroradiometer
Portable CCD Spectroradiometer, LMS-6000
Portable CCD Spectroradiometer
The Portable CCD LED Colorimeter Spectroradiometer has the following versions which can measure different parameters:
| LISUN Model | Function | Wave Range |
| LMS-6000 | illuminance, E(Fc), Ee(W/m2), Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, TM-30 (Rf, Rg), Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram. Please click here to see the LMS-6000 Test Report. | 380-780nm |
| LMS-6000C | LMS-6000 parameter without PC software and TM-30 (Rf, Rg) | 380-780nm |
| LMS-6000UV | UV-A, UV-B, UV-C and UV total Radiant Irradiance (0.1-500,000μW/cm² ±0.01μW/cm²), UV hazard irradiance, UV spectrum, Dominant Wavelength, Peak signal, Start wavelength, End wavelength. Please click here to see the LMS-6000UV Test Report. | 200-400nm |
| LMS-6000F | LMS-6000 Parameters+Flicker test | 380-780nm |
| LMS-6000L | Brightness (0.1-500,000cd/m²±0.1cd/m²), fL, Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, TM-30 (Rf, Rg), Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram. Pls. click here to see the LMS-6000L Test Report. | 380-780nm |
| LMS-6000B | LMS-6000 Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 | 350-800nm |
| LMS-6000BF | LMS-6000B Parameters+Flicker test. Pls. click here to see the LMS-6000BF Test Report. | 350-800nm |
| LMS-6000P | LMS-6000 Parameters+PAR, PPFD (0.1-500,000umol/m².s ±0.01umol/m².s) , YPFD, Blue-purple irradiance Eb, Yellow-green irradiance Ey, Red-orange irradiance Er, Ratio of red and blue radiation Erb_Ratio | 380-800nm |
| LMS-6000S | LMS-6000P Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 | 350-950nm |
| LMS-6000SF | Full functions: LMS-6000S parameters+Flicker Test. Pls. click here to see the LMS-6000SF Test Report. | 350-950nm |
| LMS-6000I | Input and Output Control via RS485 | 380-780nm |
Standards:
Fully meets CIE 177, CIE-13.3 , Optical-Engineering-49-3-033602, and IEEE.
The Chroma Meter Specifications:
• Spectral resolution: ±0.2nm, Reproducibility: ±0.5nm
• Accuracy of chromaticity coordinate (Δx, Δy): ±0.005
• Correlated color temperature CCT: 1, 500K ~ 100, 000K (±0.6%)
• Illuminance range: 0.1~500,000lx (±0.1lx)
• LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854
• With 4000mAh rechargeable Li-ion battery which can continuously work for 20 hours
• Dimensions: 135mm*80mm*23mm
• Connect to PC via USB cable. English version software can run on Win7, Win8, Win10 and Win11
LISUN LMS-6000 Portable CCD Spectroradiometer – After-sales Frequently Asked Questions (FAQ)
LISUN LMS-6000 Portable CCD Spectroradiometer were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
- Place of Origin:
- Shanghai
- Brand:
- LISUN
- Unit Price:
- USD 530
- Price Terms:
- FOB Shanghai
- Packing:
- WOODEN PACKING
- Payment Terms:
- L/C;T/T;D/P
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1
- Keywords:
- spectroradiometer, led colorimeter
