3W High Efficiency Solar Power Panel for Camera CCTV Security IP Camera Outdoor
3W High Efficiency Solar Power Panel for Camera CCTV Security IP Camera Outdoor, LL-CR03WItem Code / Model Number:
LL-CR03W
3W High Efficiency Solar Power Panel for Camera CCTV Security IP Camera Outdoor
The Power Parameter of 3W Portable Solar Panel for Camera Details:
|
Parameter of
3W Solar Panel
| |
|
Output Power（@STC ）
|
3W ±5%
|
|
Voltage（@STC）
|
7.2V ±5%
|
|
Standard
Voltage（@STC）
|
6V ±5%
|
|
Standard
Current（@STC）
|
500mA ±5%
|
|
Short
Current（@STC）
|
520mA ±5%
|
|
Efficiency
of the solar panel（%）
|
23%
|

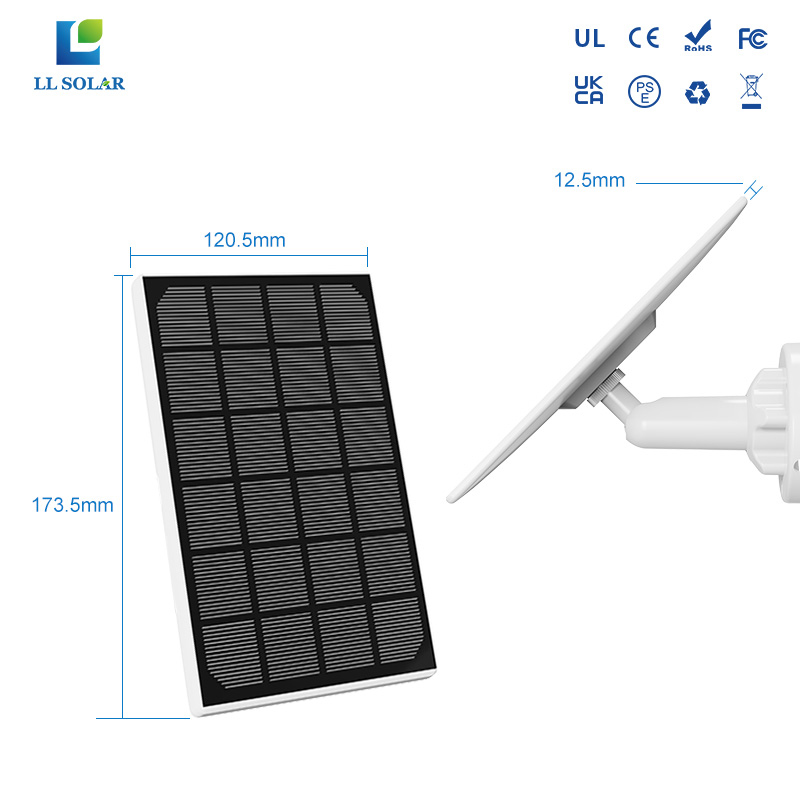

Specification of the 3W Portable Soar Panel For Camera: | |
173.5*120.5*12.5MM/6.83*4.74*0.49 inch | |
The Material of the 3W Portable Solar Panel for Camera: | |
PCB | 1.2mm Glass Fiber |
Welded Belt | 1.6*0.12mm |
Solar Cell | Mono solar with 23% efficiency |
ETFE | 0.02MM |
PET | 0.2MM |
EVA | 0.45mm,0.45MM |
Shell | 120.3±0.2*173.2±0.2*12.7±1mm |
Cable | 2.9M,PVC,13/0.15BC*2C |
The Back Side of The 3W Portable Solar Panel:
We can make the solar panel as your mould . Or you can mould the frame as our solar panel's size.
Waterproof function of the Portable Solar Panel for Camera:
It can be installed outdoor anywhere,need not to fear of rain and dust.
|
The Package
of 3W Portable Solar Panel For Camera:
| |
|
Weight of
Product with Inner Box
|
0.315KG
|
|
Size
|
195×136×44mm
|
|
QTY/CTN
|
48PCS
|
|
Weight / CTN
|
16KG
|
|
Size / CTN
|
560×405×300mm/22.05*15.94*11.81
inch
|
The Power Parameter of 3W Portable Solar Panel for Camera Details:
The Application of Portable Solar Panel for Camera Is Wide:
1) Remote Forest;
2)Prairie;
3) Gargen;
4) Sea
5) Villas
6) Charge for USB devices,like phone,power bank and so on.
Manufacture of Portable Solar Panel Details:
1. There are more than 10 manufacture lines;
2. Over 300 workers;
3. More than 30 SETS of machines.
Solar Panel: 3W, 22% efficiency;
Material: Matt ETFE+EVA+Mono solar cell+PCB;
Output: 5V/0.6A (MAX);
Output Ports: Micro USB/ YTpe C option;
Net Weight: 241g;
Size: 19.5*13.6*4.4CM
Remark: with frame and support.
- Other Price Terms:
- FOB
- Packing:
- Carton, Pallet
- Payment Remarks:
- Paypal, Bank Transfer
- Delivery Time:
- 20-30 days
- Min Order Quantity:
- 200
- Keywords:
- camera solar panel, camera solar charger, solar charger for camera
