Pedestal Rockbreaker Boom System
Pedestal Rockbreaker Boom System, BB600Item Code / Model Number:
BB600
Pedestal Rockbreaker Boom System
Pedestal Rockbreaker Boom System

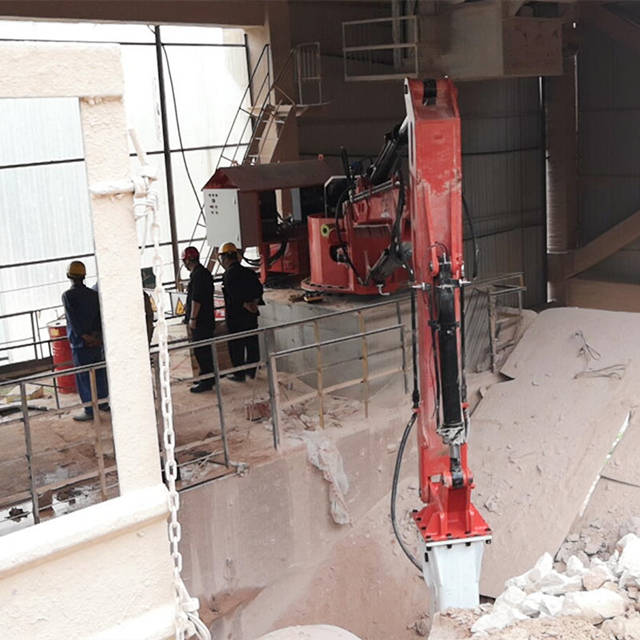

Pedestal rockbreaker boom system is a machine designed to manipulate large rocks, including reducing large rocks into smaller rocks. It is typically used in the mining, quarrying and aggregate industries to remove oversize rocks that are too large or too hard to be reduced in size by a crusher or grizzly. Pedestal rockbreaker boom system consists of four major components: pedestal booms, hydraulic hammer, hydraulic power unit and operating control.
All elements are manufactured to stringent quality and exacting safety standards. The company’s experienced engineering team not only ensure that customers receive the best solution for their needs, they also make sure that the right equipment is positioned in the right place for optimum safety, reliability, durability and productivity.
| Model No. | Unit | BB600 |
| Boom weight | kg | 3550 |
| Max. horizontal working radius | mm | 8430 |
| Max. vertical working radius | mm | 6330 |
| Min. vertical working radius | mm | 2300 |
| Max. working depth | mm | 5810 |
| Rotation | ° | 170 |
- Place of Origin:
- China
- Brand:
- YZH
- Unit Price:
- USD 80000
- Price Terms:
- FOB Qingdao
- Other Price Terms:
- CFR, CIF, EXW, FCA
- Packing:
- Carton box Wooden box
- Payment Terms:
- L/C;T/T;M/T;Cash
- Delivery Time:
- 60 days
- Min Order Quantity:
- 1 set
- Standard / Certificates:
- ISO9001, ISO14001, ISO45001, CE
- Keywords:
- rockbreaker, boom system, rockbreaker boom
